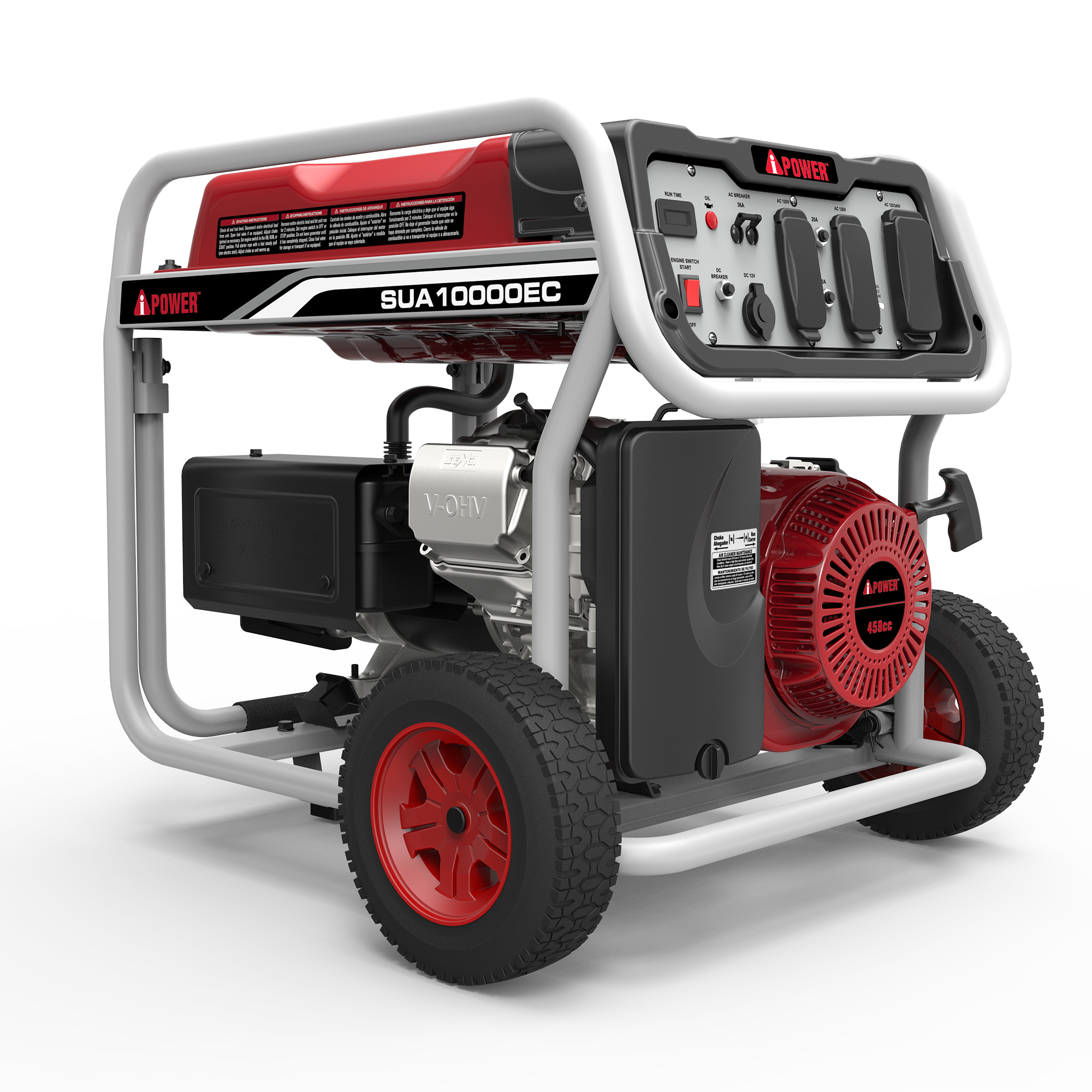

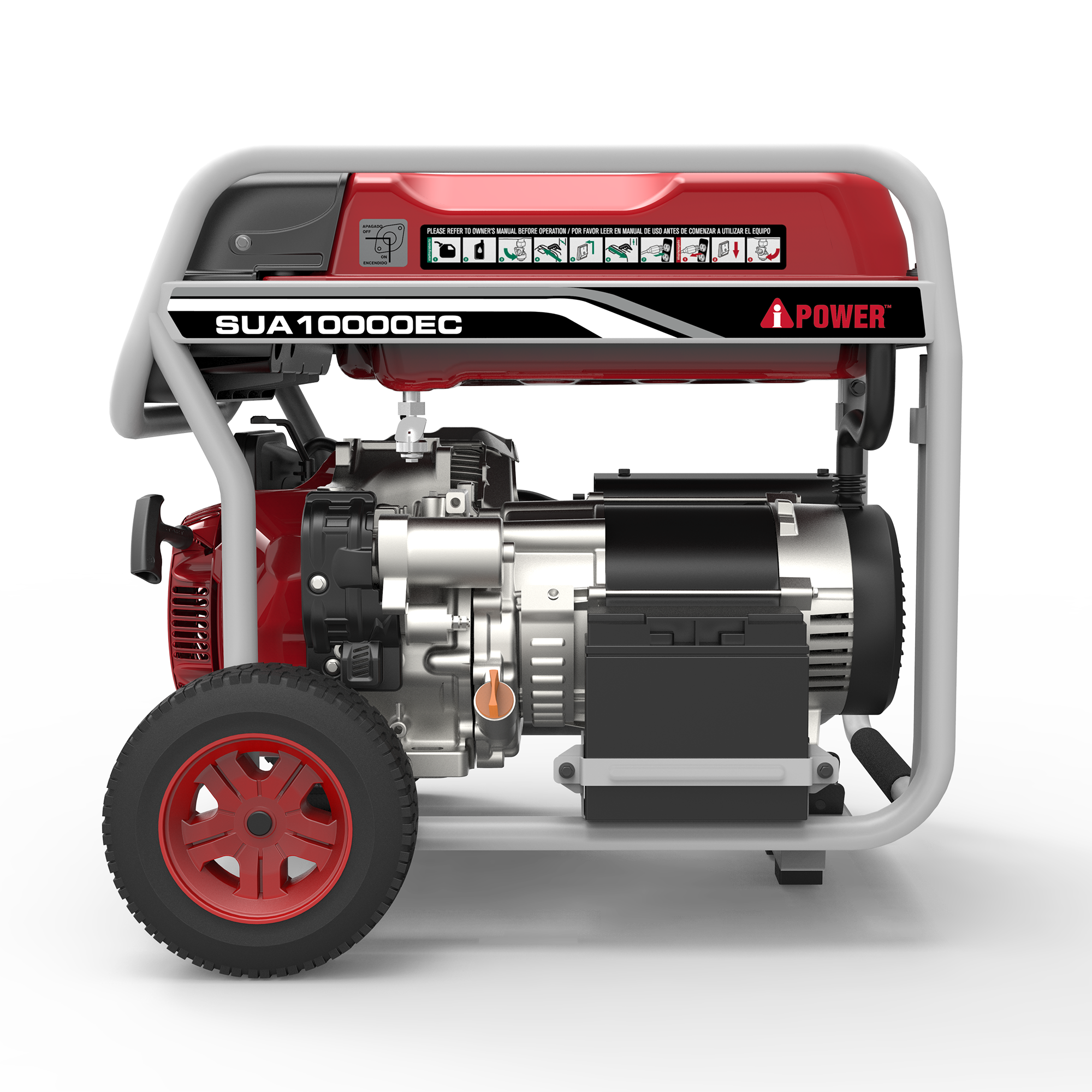

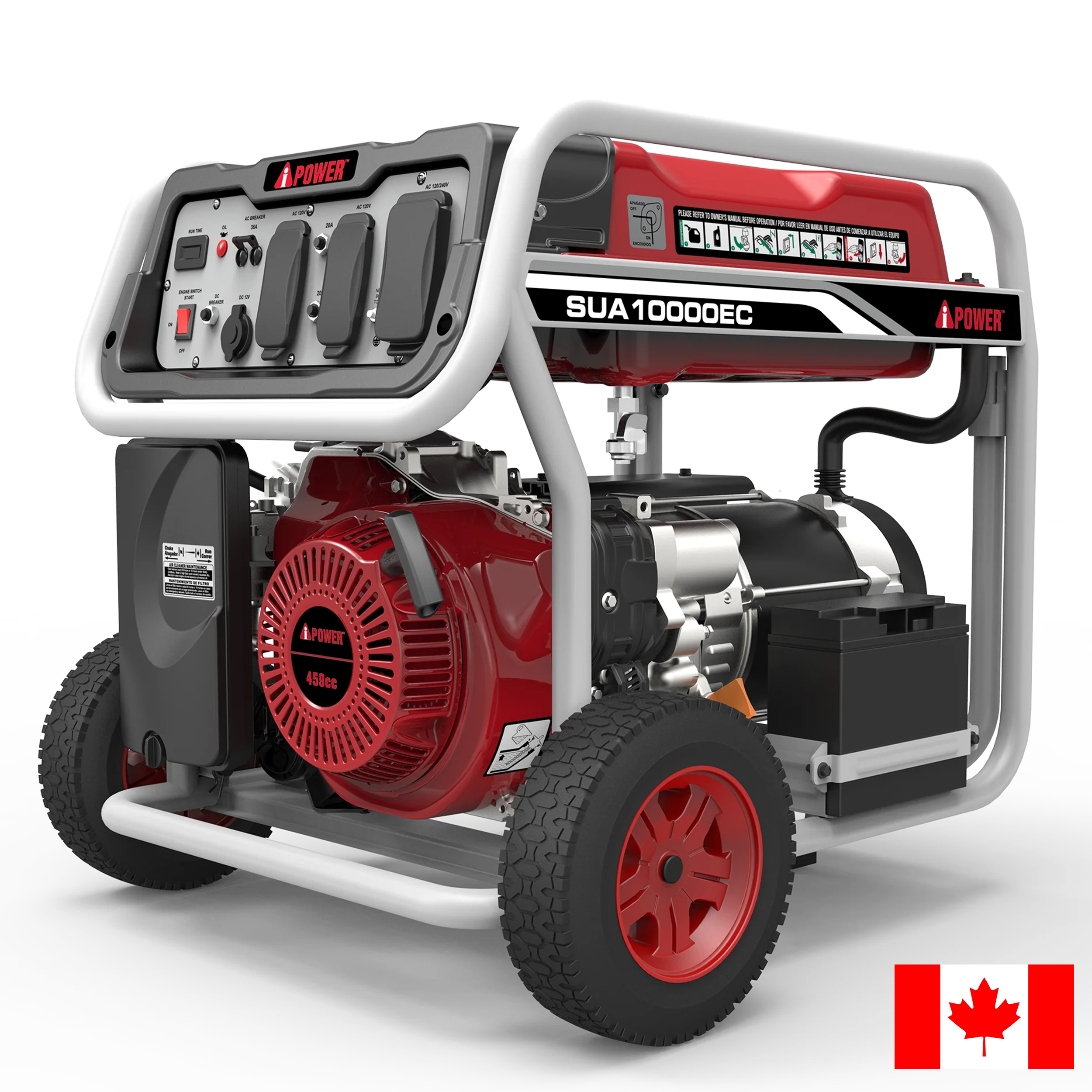

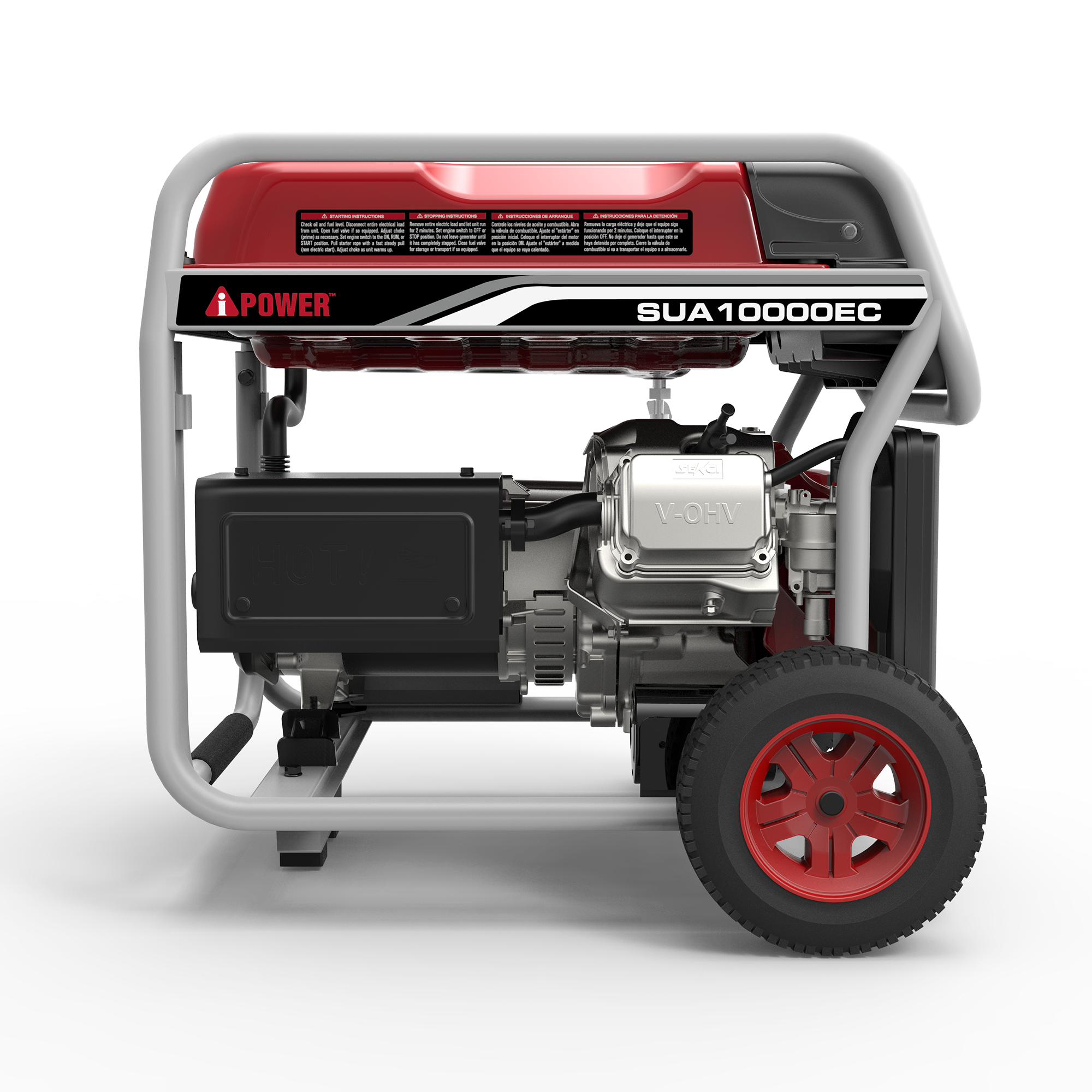

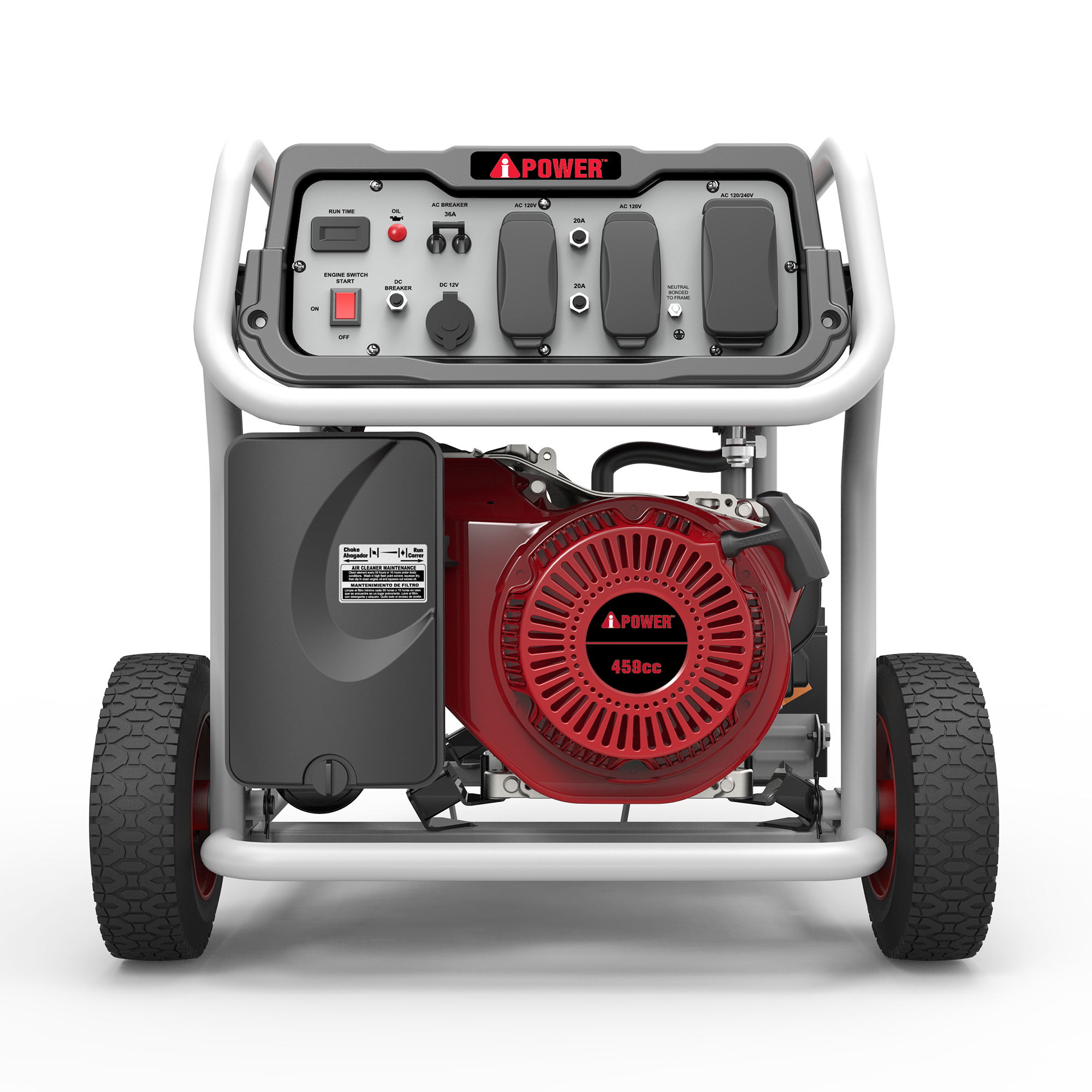

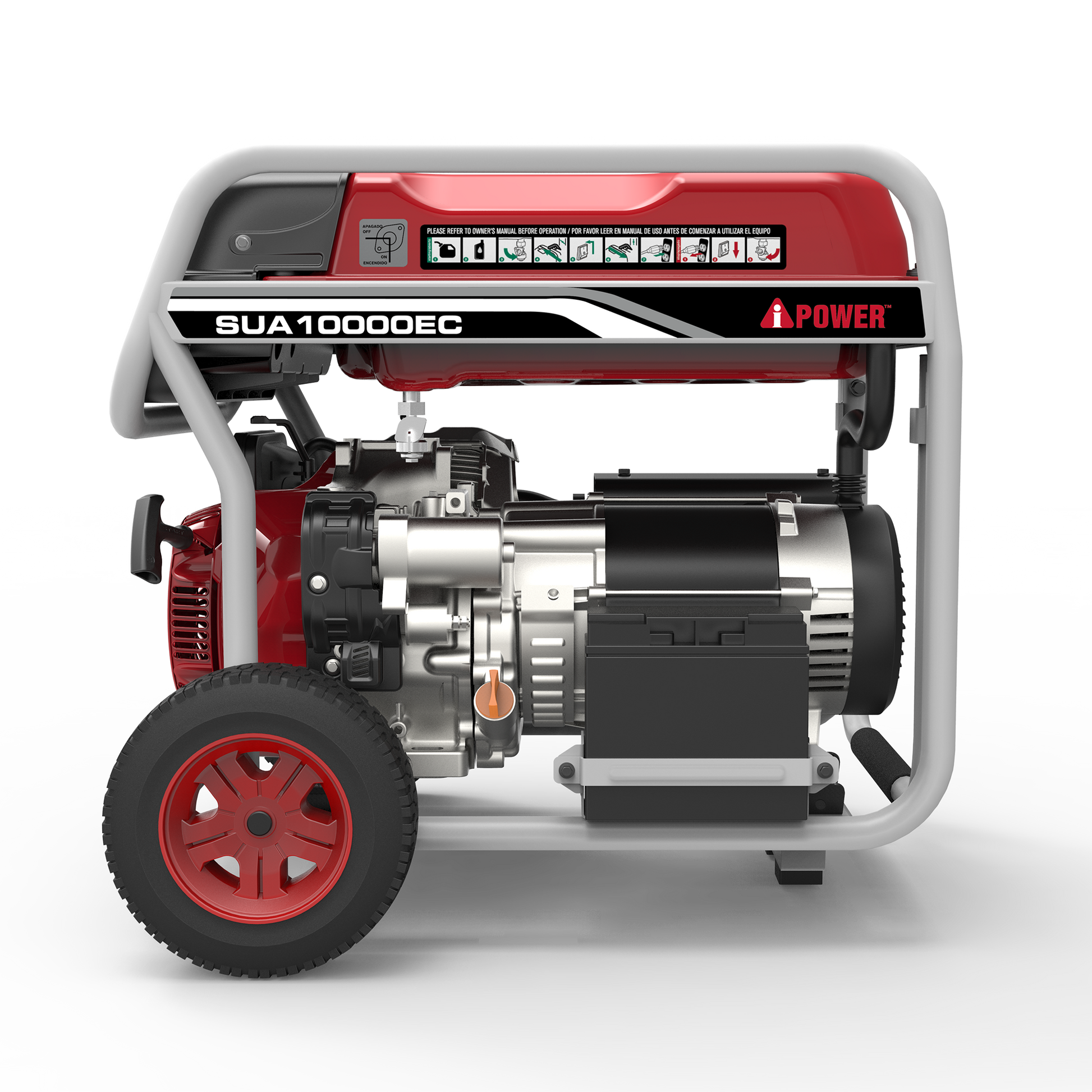

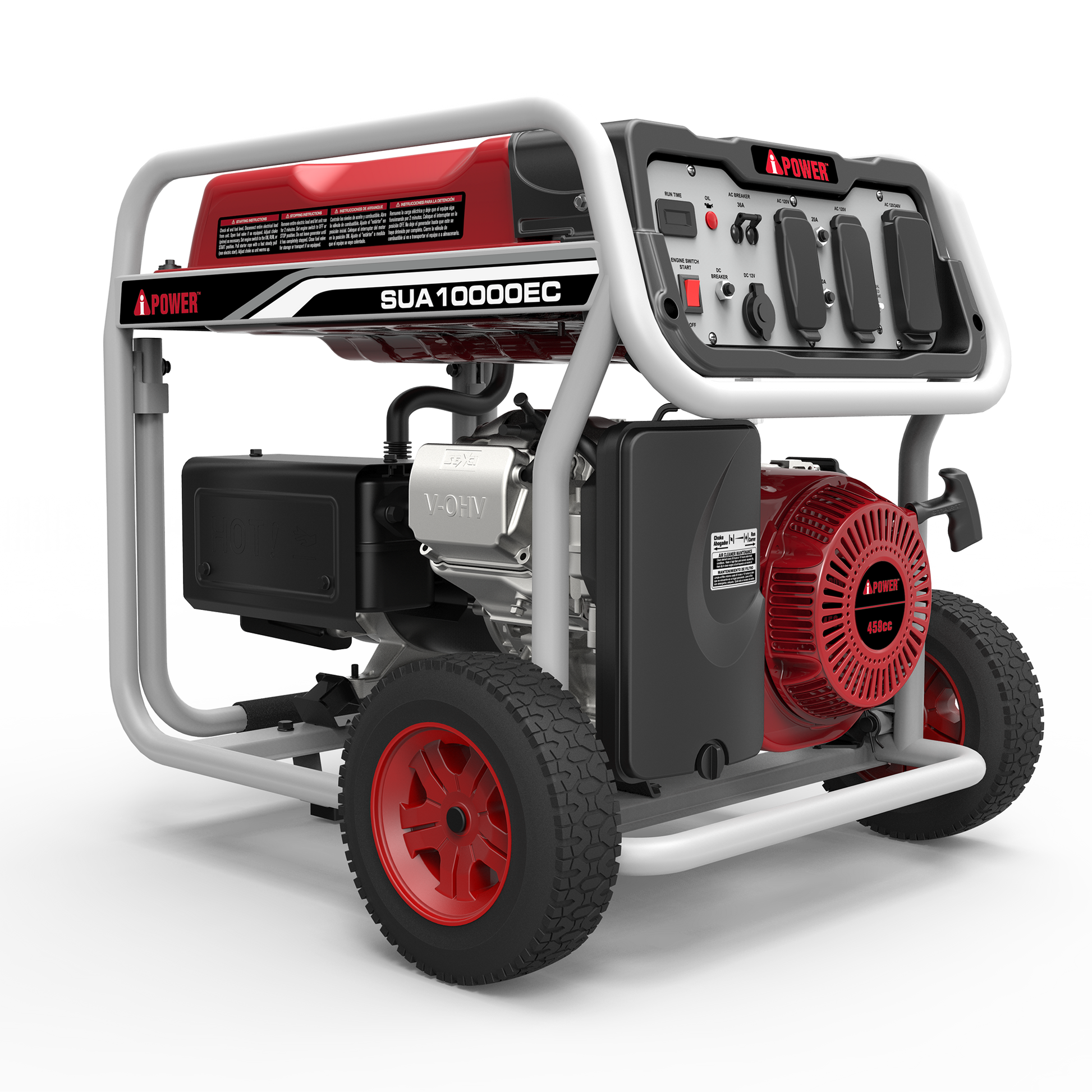

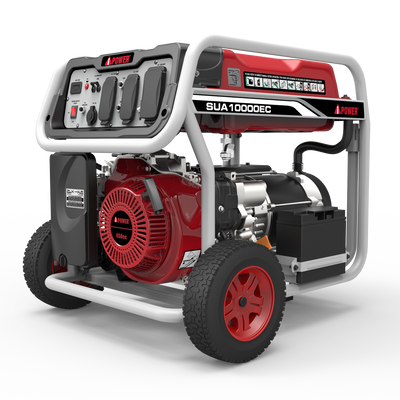

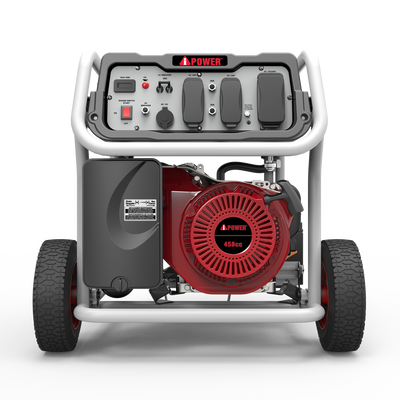

SUA10000EC - 10000 Watt Portable Generator

SUA10000EC - 10000 Watt Portable Generator

SKU: SUA10000EC

UPC: 616641365103

Performance Series Engine: 459cc OHV engine with Cast Iron Sleeve & Low Oil Shutdown
High Output: 10,000 starting watts - 8,200 running watts
Run Time: 7-gallon fuel tank for extended run time of 14.5 hrs. at 25% load
Digital Hour Meter: For quick and easy run time reading
Electric Start: Convenient push button electric start system for quick and easy use
Heavy Duty Frame Construction: Built tough with durable powdercoat finish
Portable Design: Easy to transport with folding handle and wheels

Product Retired

Support documents and manuals remain available below.

Description:

The only word for our new SUA10000EC is POWER! With the only 459cc single cylinder overhead valve engine currently in the market we can easily say the SUA10000EC delivers on power! Combine this with our low THD alternator and you have one tough and powerful generator. The SUA10000EC puts out 8,200 running watts and 10,000 starting watts so this is a perfect generator for almost every need.

This size and power makes the SUA10000EC the perfect generator for outdoor activities like camping, recreational vehicles, sporting events, outdoor parties and more. With its big power you can also use this for emergency backup to power your refrigerator, heater, air conditioning, lighting, TV and more.

This model is EPA and CARB approved which means the SUA10000EC meets or exceeds all emission requirements so this model is approved to be sold in all 50 US states!

Powerful and Reliable
Equipped with a powerful 459cc Performance Series Engine, the SUA10,000EC offers ample and reliable power when you need it most.

Built in Portability
Built in portability with folding handle, rugged wheels, and a durable power-coated steel frame to successfully meet your transportation demands.

Outlets for All Your Power Needs
Outlets include 2x5-20R Duplex GFCI (20A, 120V) - 1x14-50R (50A, 120/240V) 1xAutomotive Style Outlet (8.3A, 12V). Outlets have rubber outlet covers to help guard against moisture, dust, and debris.

SUA10000EC SPECIFICATIONS
Model Number	SUA10000EC
OUTPUT
Starting / Running Watts	10000 / 8200W
AC Voltage	120/240V
Rated Speed/Frequency	3600rpm / 60Hz
Total Harmonic Distortion (THD)	Standard
Grounding System	Neutral Bonded to Frame
Noise Level (dB)	77
ENGINE
Engine Type	High Performance 459cc OHV
Starting System	Recoil Start - Electric Start
Low Oil Shutdown	Yes
Cast Iron Sleeve	Yes
Fuel Type	Gasoline
Alternator Type	Brushed with AVR
Tank (Gas)	7 Gal
Runtime @ 25% Load	14.5 Hour
Oil Type and Capacity	10W-30 - 1100ml

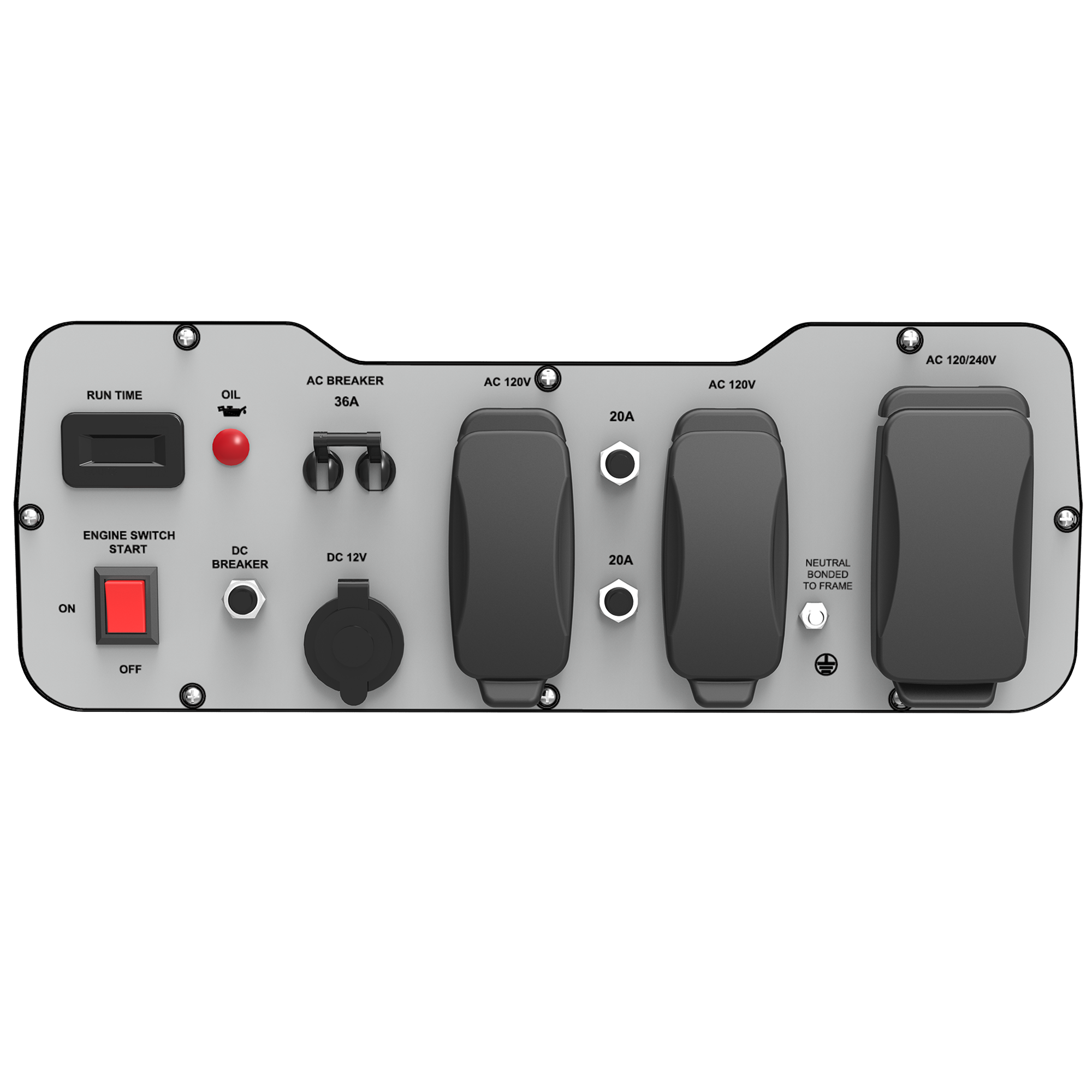

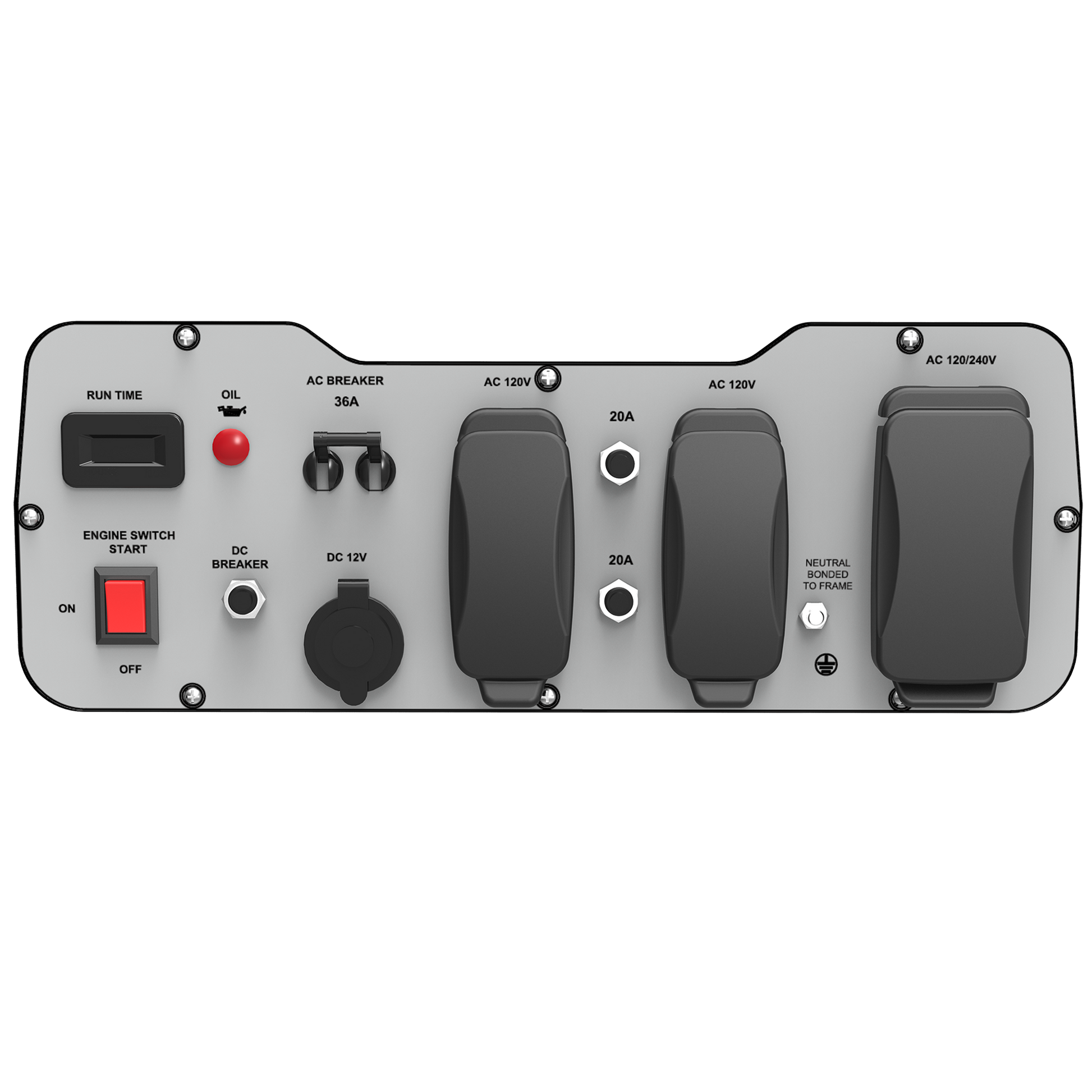

CONTROL PANEL
AC Outlets	2x5-20R Duplex GFCI (20A, 120V) - 1x14-50R (50A, 120/240V)
DC Outlets	1xAutomotive Style Outlet (8.3A, 12V)
Hour Meter	Yes

CERTIFICATIONS
Certifications	EPA - CARB
TRANSPORTATION
Handle	Folding U Shape
Wheel	Flat Free 9.0"
PACKAGING
UPC	616641365103
Unit Weight (Net)	216 lbs / 98 kg
Shipping Weight (Gross)	227 lbs / 103 kg
Assembled Unit Dimension	27.6 x 25.2 x 25.6 in
Carton LxWxH	28.0 x 21.1 x 23.0 in
Included Accessories	Oil - Tool Kit - 12VDC Battery Charging Cable - Battery - Manual
GENERAL
Warranty (Residential)	2 Year Limited Warranty

Unboxing & Operation Video

Maintenance Video

⏳

Video content is being prepared and will be updated soon.

Stay tuned for more exciting content!

Safety Q&A

1、Where should I place the generator during operation?
Always operate the generator outdoors only. Keep it at least 20 feet (6 m) away from doors, windows, and vents, and at least 5 feet (1.5 m) away from any combustible materials. Place it on a dry, stable surface under a protective cover or canopy to shield it from the weather.

2、What should I know before refueling a generator?
Always turn off the generator and let it cool down completely before refueling.
Use clean, fresh fuel of the recommended grade.
Never refuel while the generator is running or hot, as this may cause fire or explosion.

3、Where should I safely store a generator when not in use?
Store the generator in a cool, dry, and well-ventilated location. Make sure the air vents are not blocked and that it is kept away from any flammable materials.

4、How do I safely transport a generator?
Before transporting, turn off the unit, drain the fuel tank, and disconnect the spark plug. Keep the generator upright during transport, ensure ventilation openings are not blocked, and avoid exposure to heat or moisture.

Setup/Startup

1、How do I connect the generator battery? (For models with electric start)
When you first receive the generator, the negative battery cable is usually disconnected to prevent discharge during storage.

Locate the negative cable near the top or rear of the battery.
Attach the loose end of the negative cable to the negative terminal post of the battery and tighten securely with a bolt.
⚠ Caution: Avoid touching both the battery terminal and the generator frame with tools or metal objects at the same time to prevent short circuits.

2、What type of engine oil should I use?
Initial use (break-in period): SAE 30, 10W-30, or 5W-30 mineral oil is recommended.
After break-in: You may use either mineral oil or full synthetic oil.
High temperatures (above 95°F / 35°C): 10W-40 is recommended.

3、What type of gasoline should I use?
Use unleaded gasoline with an octane rating of 87 or higher, and with ethanol content of no more than 10% (E10).
⚠ Tip: Lower ethanol content helps extend the life of the carburetor, fuel system, and seals.

4、How do I add fuel and check the oil for the first time?
Before the first startup, fill with the recommended engine oil.
Check the dipstick and ensure the oil level is within the marked range.
When adding oil or fuel, avoid spills, keep away from open flames, and use a dedicated oil/fuel container for safety.

5、How do I start the generator with recoil (pull) start?
Set the breaker and master control switch to OFF.
Select the fuel type:
Gasoline: Open the gasoline valve → Turn the fuel selector to Gasoline.
Propane: Close the gasoline valve → Turn the fuel selector to Propane → Connect the propane tank and open the valve.
Switch the battery to ON (or “RUN” on some models).
Pull the recoil cord: Pull slowly until resistance is felt, then pull sharply. Repeat if necessary until the engine starts

6、How do I use the electric start function?
Ensure the battery is properly connected and charged.
Set the fuel switch to the correct position.Turn the start switch to START.
Once the engine starts, release the switch and let it return to RUN/ON.

7、Does the generator need to warm up?
Yes. After starting, let the engine run idle for 1–3 minutes to allow the oil to circulate fully before applying a load.

8、How do I safely connect electrical loads?
Start the generator before connecting any appliances.
Connect higher-wattage devices first (e.g., refrigerator, air conditioner), then smaller devices.
Do not exceed the rated wattage capacity of the generator.

9、How do I start the generator in cold weather?
Use engine oil suitable for low temperatures (e.g., 5W-30).Place the generator in a warmer environment or use an engine block heater if available.Expect longer starting times in freezing conditions — this is normal.tent goes here.

Maintenance

1、How do I change the generator oil?

Place the generator on a level surface.
Locate the oil drain bolt at the bottom lip of the crankcase and place a container underneath.
Use a 12mm wrench to remove the drain bolt and allow the oil to drain completely.
Reinstall the bolt, remove the oil filler cap, and refill with oil until it reaches the thread level of the cap.
Tip: If the generator is on a flat surface, excess oil will naturally overflow before it is overfilled.

2、How do I drain fuel from the tank?
Turn the fuel valve to the OFF position.
Place a container under the fuel 3. filter cup (below the valve).
Remove the cup and turn the valve to ON to drain fuel completely.
Reinstall the fuel filter cup.

3、How should I prepare my generator for long-term storage?
Turn the circuit breaker OFF and run the generator for 3–5 minutes.
Switch the fuel valve to OFF and let the engine run until it shuts down.
Turn the engine/battery switch to OFF.
Drain remaining fuel from the tank and carburetor.
Remove the spark plug, add 2 tablespoons of 10W-30 oil into the cylinder, and pull the recoil starter a few times to lubricate.Reinstall the plug.
Disconnect and remove the battery, then maintain it with a trickle charger.
Store the generator in a cool, dry, and well-ventilated location.

4、How do I maintain the generator battery?
Generator batteries can lose charge within 3–6 months of storage.
Disconnect the battery when not in use.
Use a 12V SLA-compatible trickle charger to keep it charged.
Avoid exposing the battery to extreme heat or cold.

5、How often should I perform generator maintenance?
Before each use: Check fuel level, engine oil, and air filter. Every 50–100 hours of operation: Change engine oil, clean the spark plug, and service the air filter. Long-term storage: Drain fuel completely and store the generator properly.

6、Do I need to replace the air filter, and how often?
Yes. The air filter should be cleaned every 25 hours of use and replaced every 100–150 hours, or more often in dusty conditions.

7、When should I replace the spark plug?
Inspect the spark plug every 100 hours of operation. Replace it if it shows wear, buildup, or damage.

8、How do I prevent stale fuel from damaging the engine?
If the generator will not be used for more than 30 days, add a fuel stabilizer to fresh gasoline or drain the fuel system completely.
