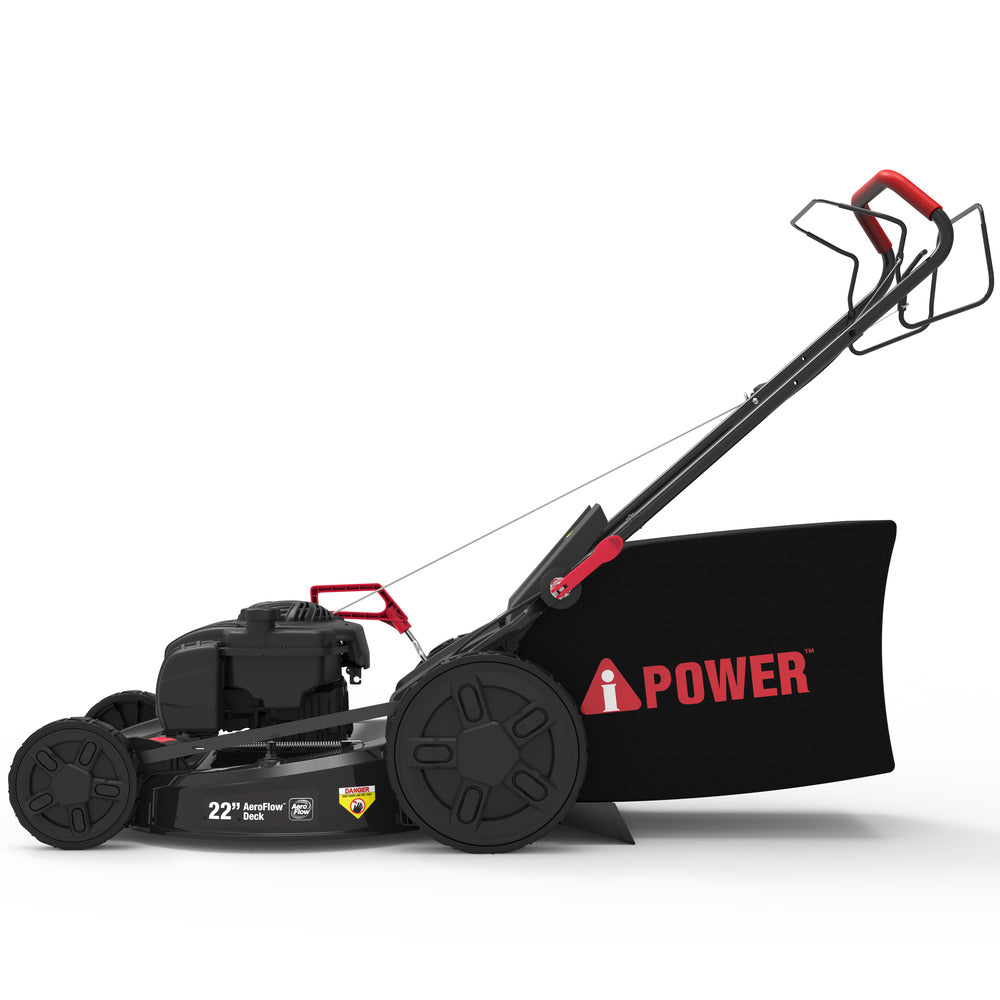

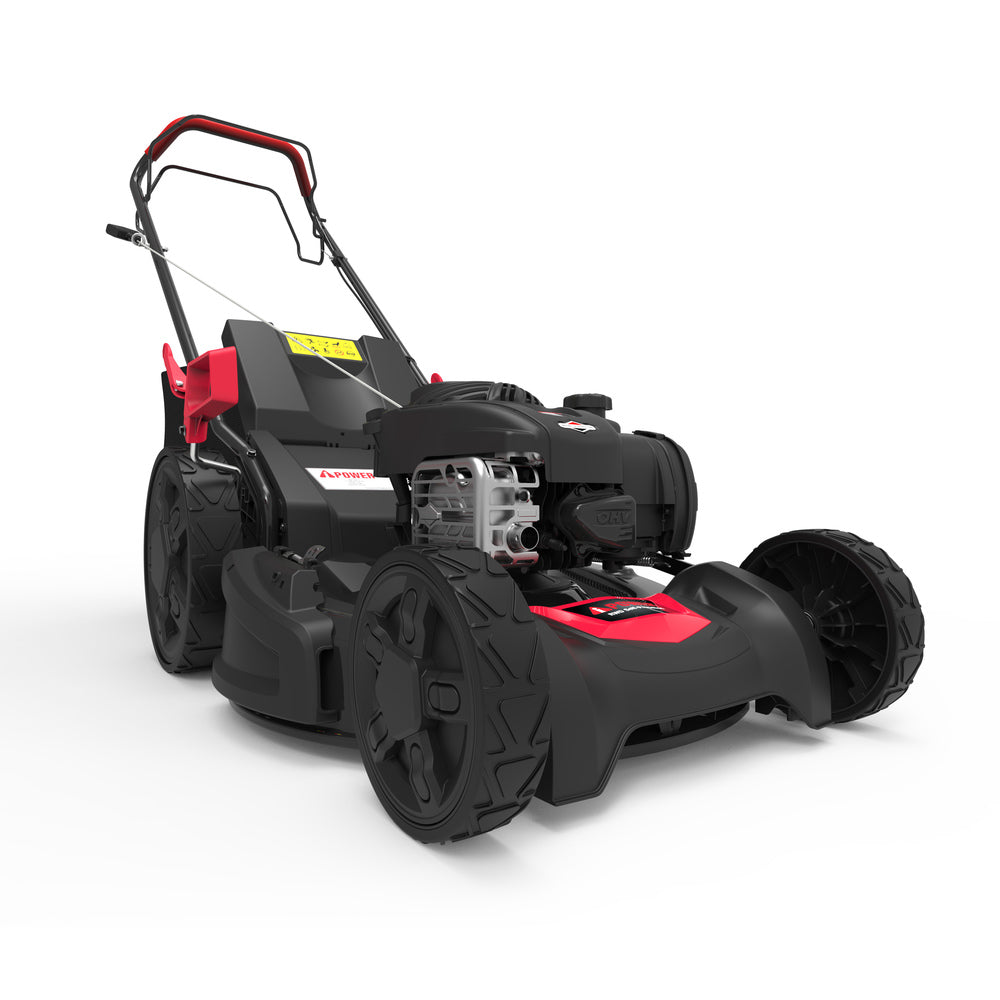

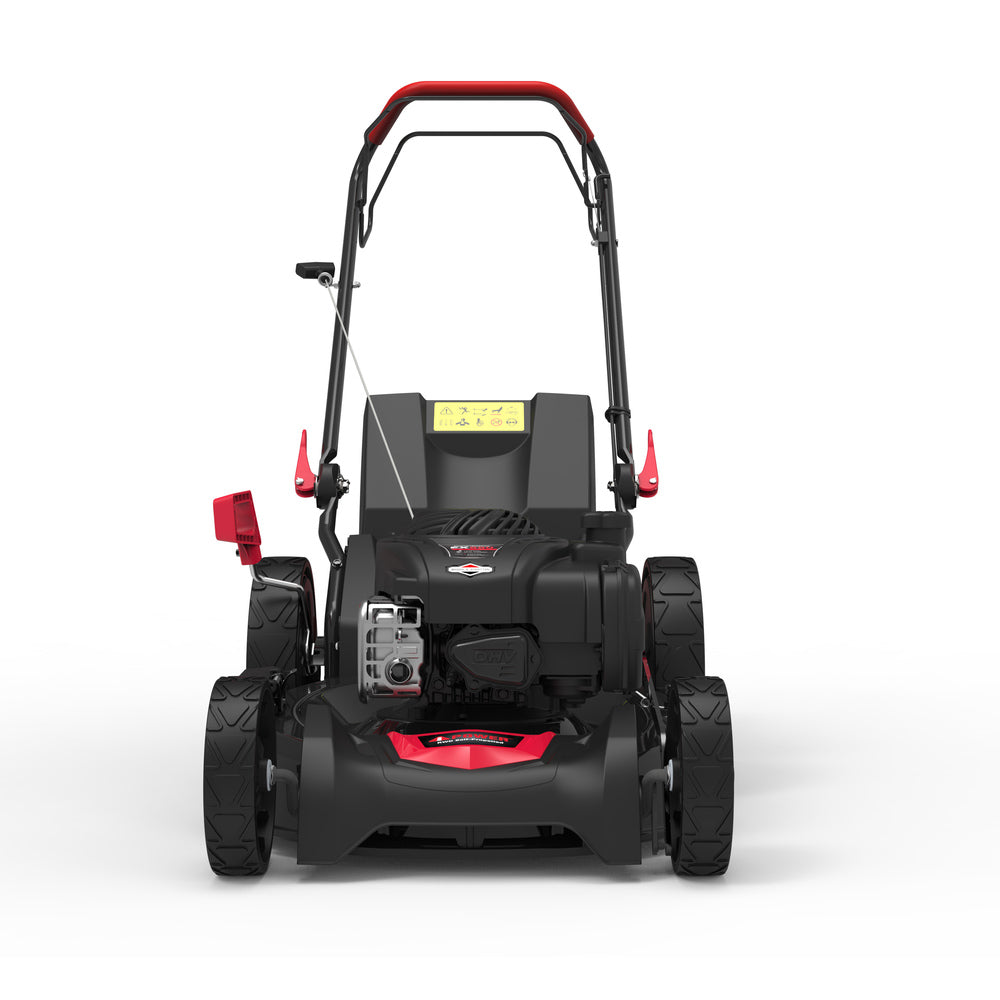

AiPower 21" Self-Propelled RWD Walk Behind Mower with Aero Flow™ Deck LM3N1-SPR-S
SKU: LM3N1-SPR-S
Barcode: 810191311393
Couldn't load pickup availability

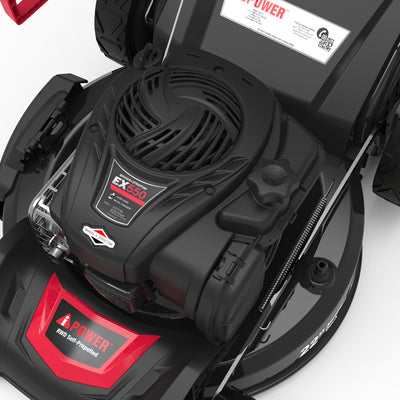

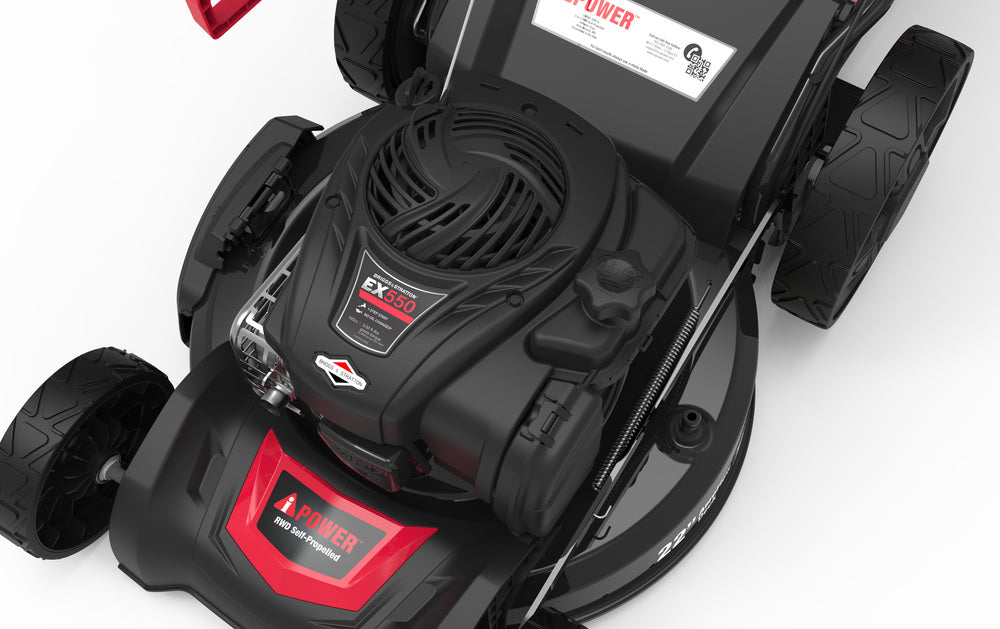

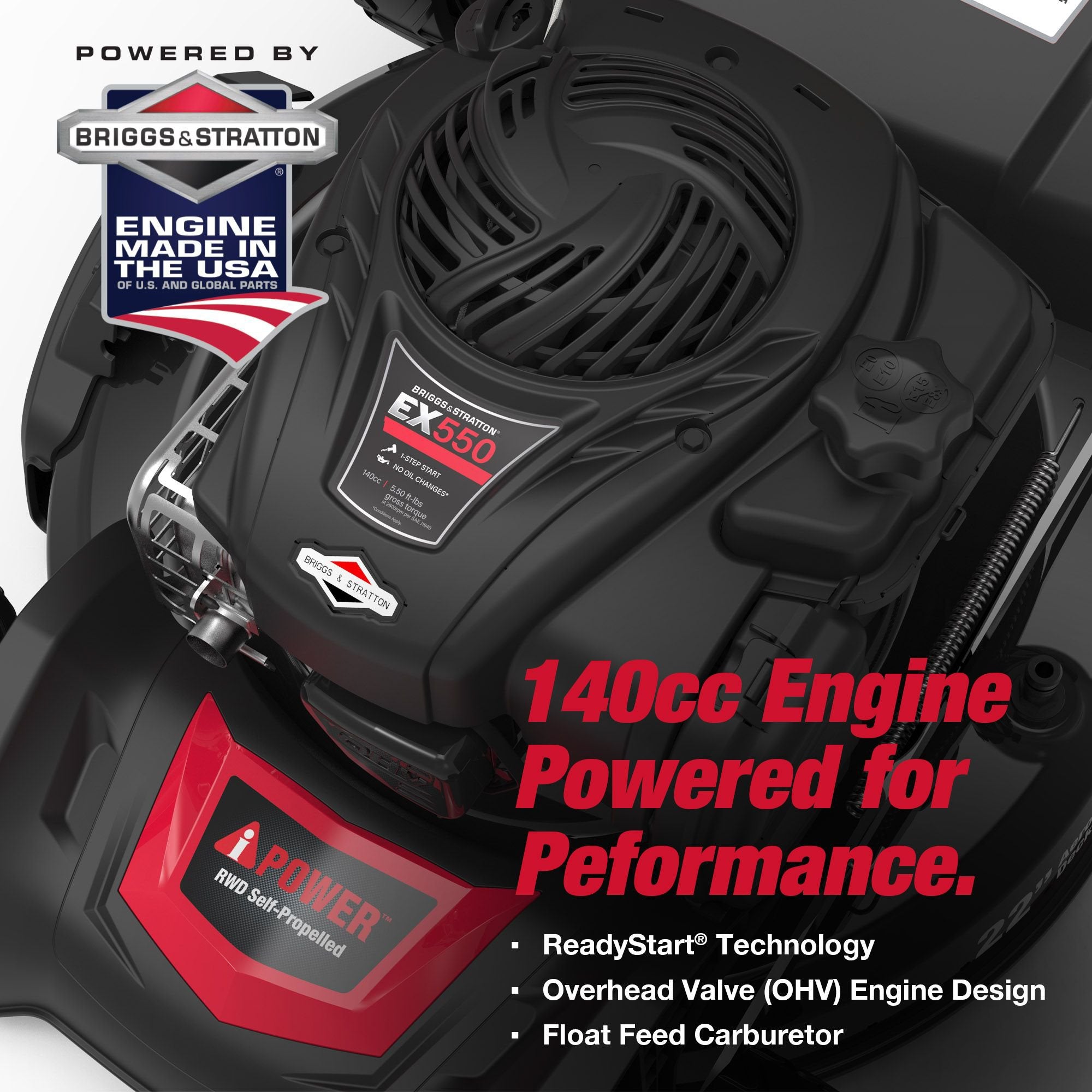

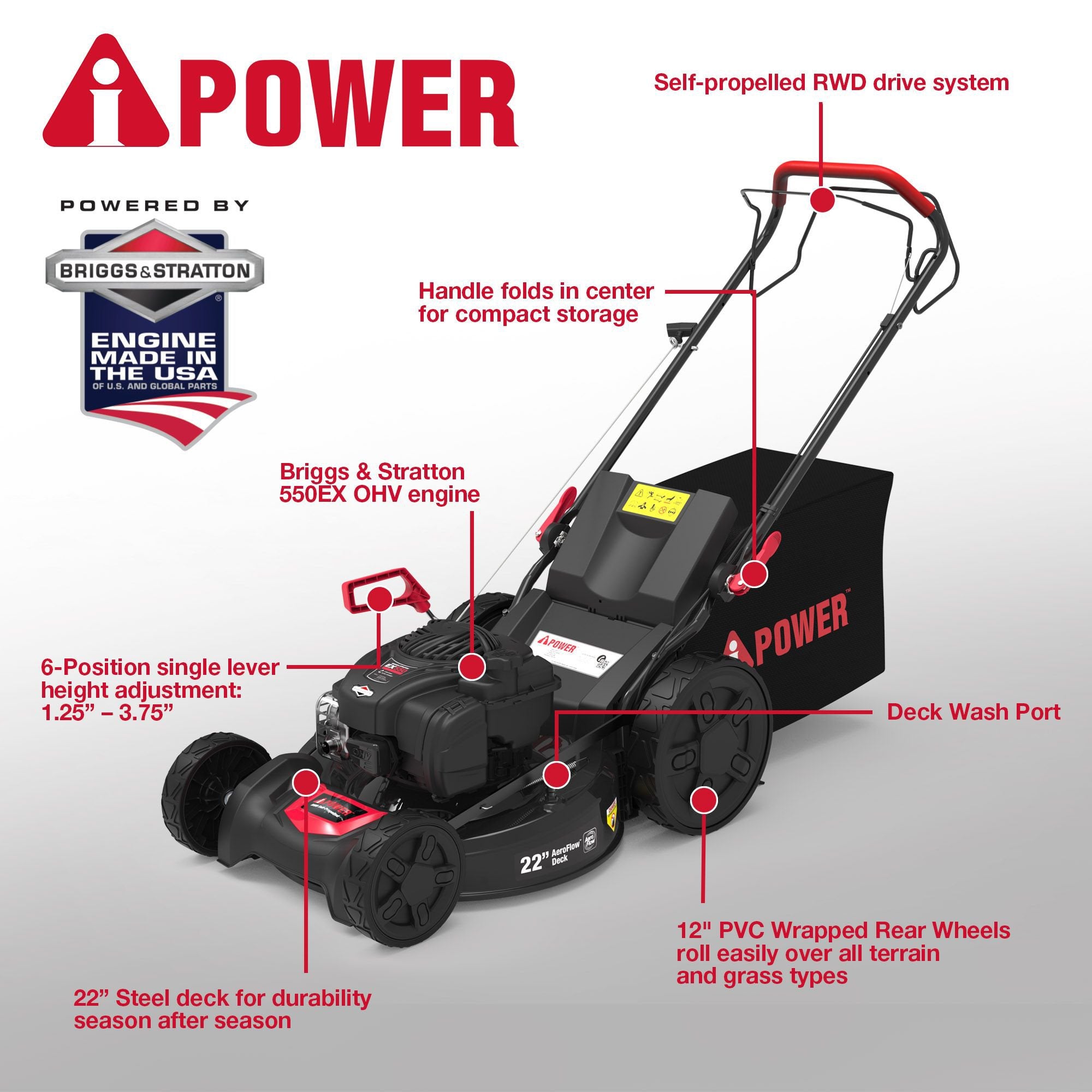

- Power: Briggs & Stratton EX550 Gas Engine with ReadyStart® technology

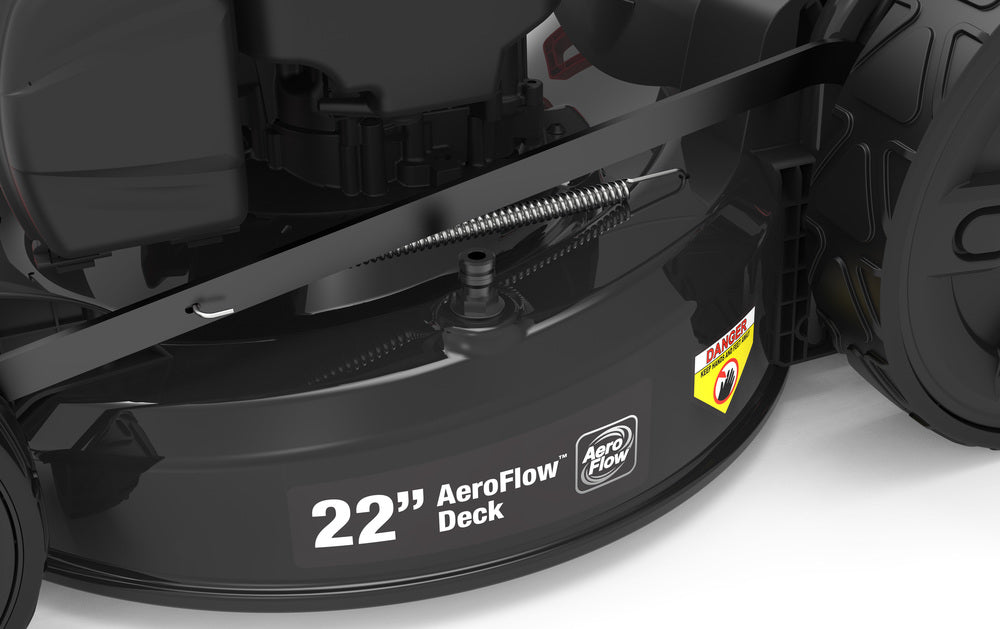

- Deck: 22” Steel with hardened 21” blade and Aero Flow™ technology

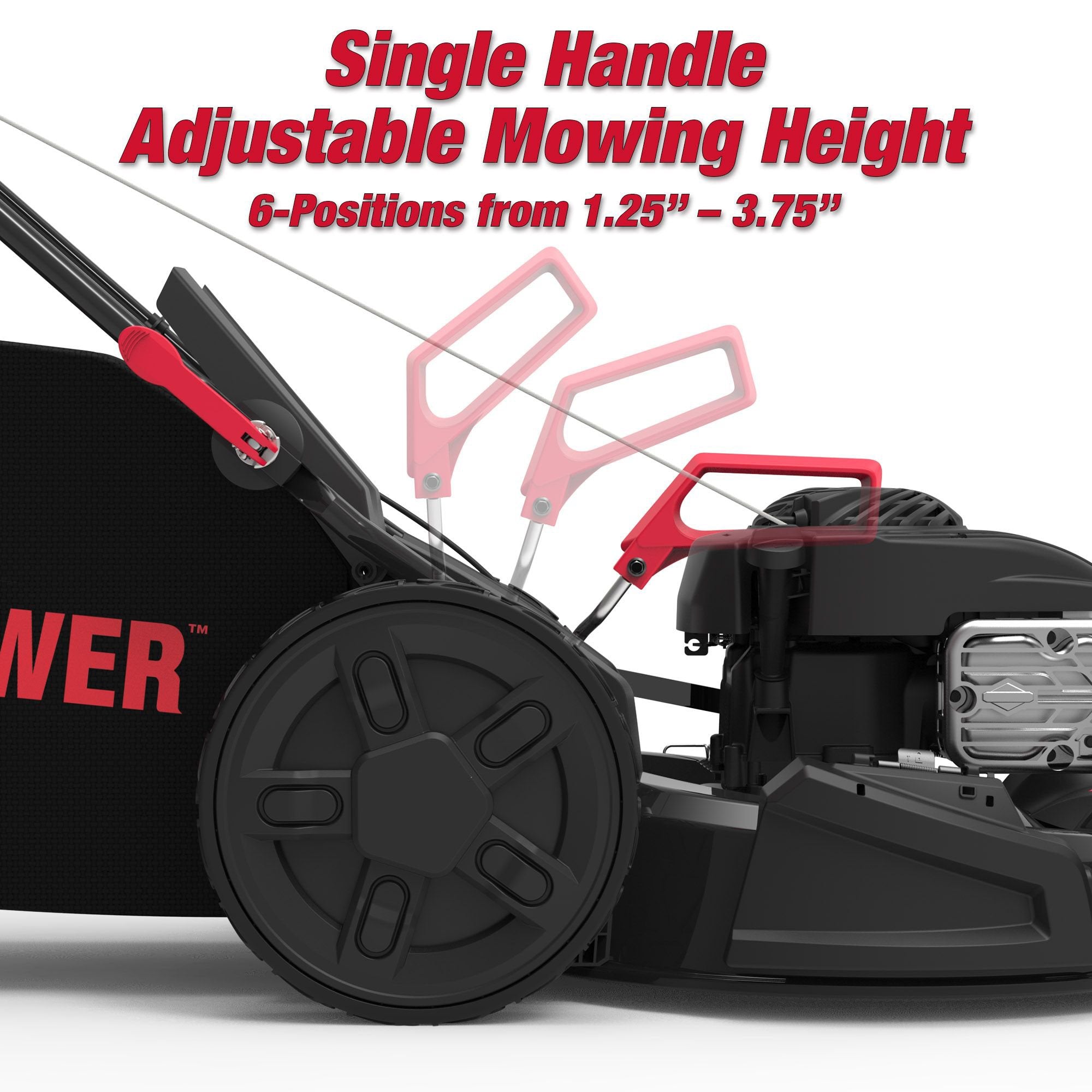

- Height Adjustment: Single Lever 6-position from 1.25" - 3.75"
- Drive: RWD Self-propelled drive system
- Cutting System: 3-in-1 rear bag, mulching, side discharge

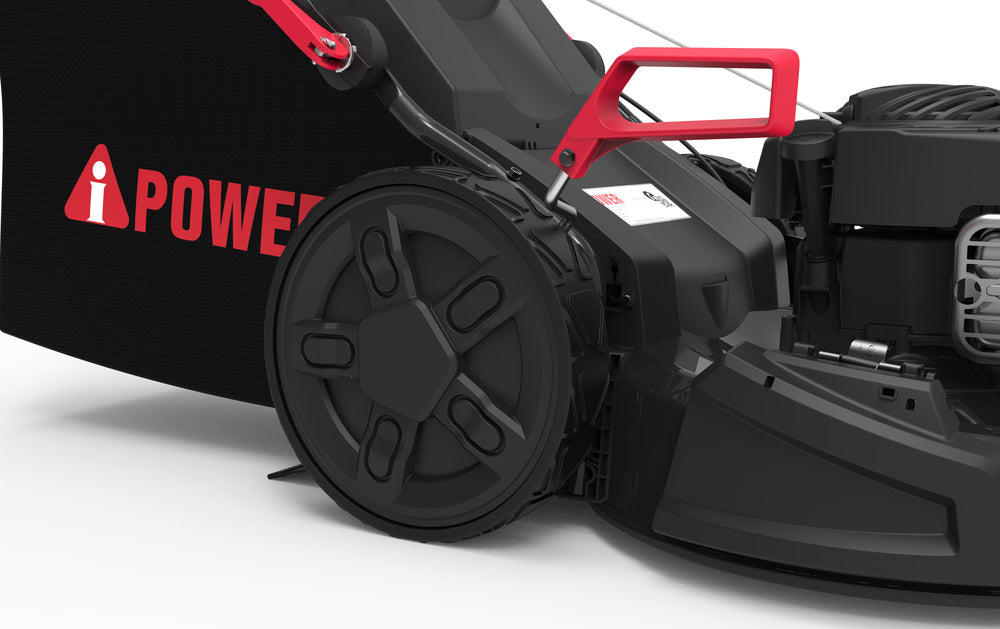

- Wheels: 12" Rear / 8" Front

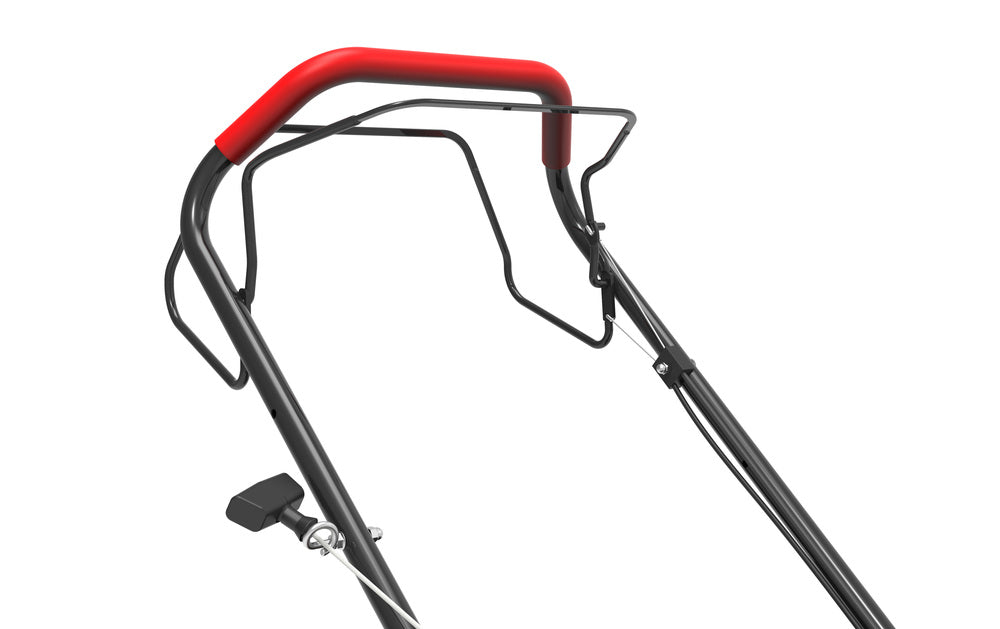

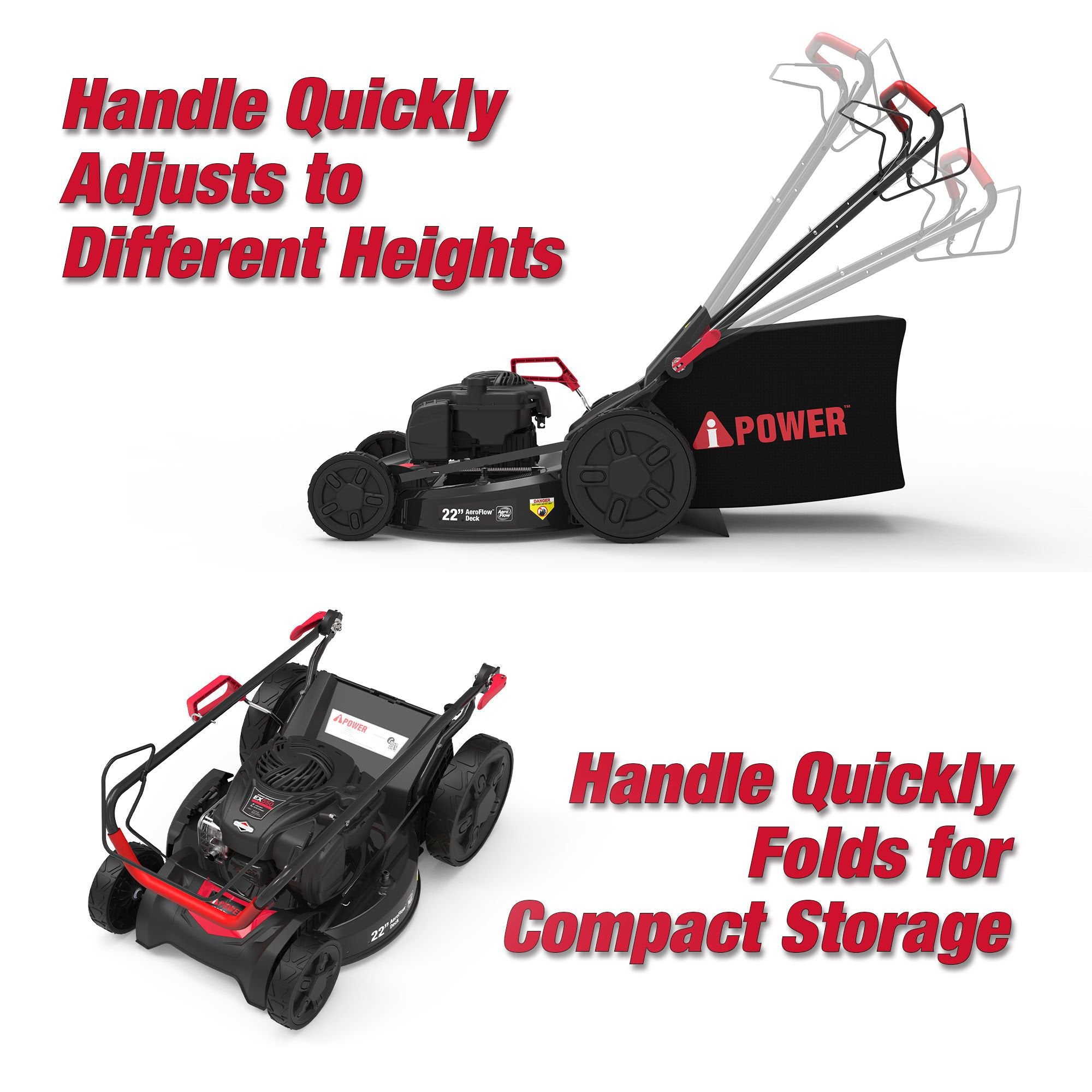

- Handle: Ergonomic adjustable height, folds for compact storage
- Grass Bag: 1.85-Bushel wide-mouth opening for quick emptying
- Included in box: Mulch kit, side-discharge chute, engine oil
- Assembly: Comes fully assembled in the box, no assembly required
- Warranty: 2-Year Warranty on engine and chassis
AiPower 21" Self-Propelled RWD Walk Behind Mower with Aero Flow™ Deck LM3N1-SPR-S
Description:
The AiPower LM3N1-SPR-S is a self-propelled RWD mower that includes exclusive and premium features and performance. The EX550 Briggs & Stratton engine includes their ReadyStart® starting system–no prime or choke, guaranteed to start in one pull every time. The LM3N1-SPR-S Mower is built with quality and pride assembled in the USA at the AiPower North American Operations Center in Olive Branch, MS.
Built to PerformThe rear-wheel-drive self-propelled system dominates all lawns. Especially essential for yards with slopes and hills, the LM3N1-SPR-S maintains a consistent cut without any extra effort giving you more control during operation while increasing your safety. The 22” steel deck with Aero Flow™ technology provides superior grass clippings management. Easily adjust the deck height of all four wheels together with a single lever on the side of the deck. You can quickly and easily change the cutting options without tools: rear-bag capture of clippings, mulching, or side discharge. The durable 12” rear and 8” front wheels roll easily over all terrain. The quick-release levers allow the handle to adjust to different heights for customized comfort or fold for compact storage if desired. Experience a superior quality cut with reliable and durable performance from the LM3N1SPR-S mower season after season backed by a 2-Year Warranty.

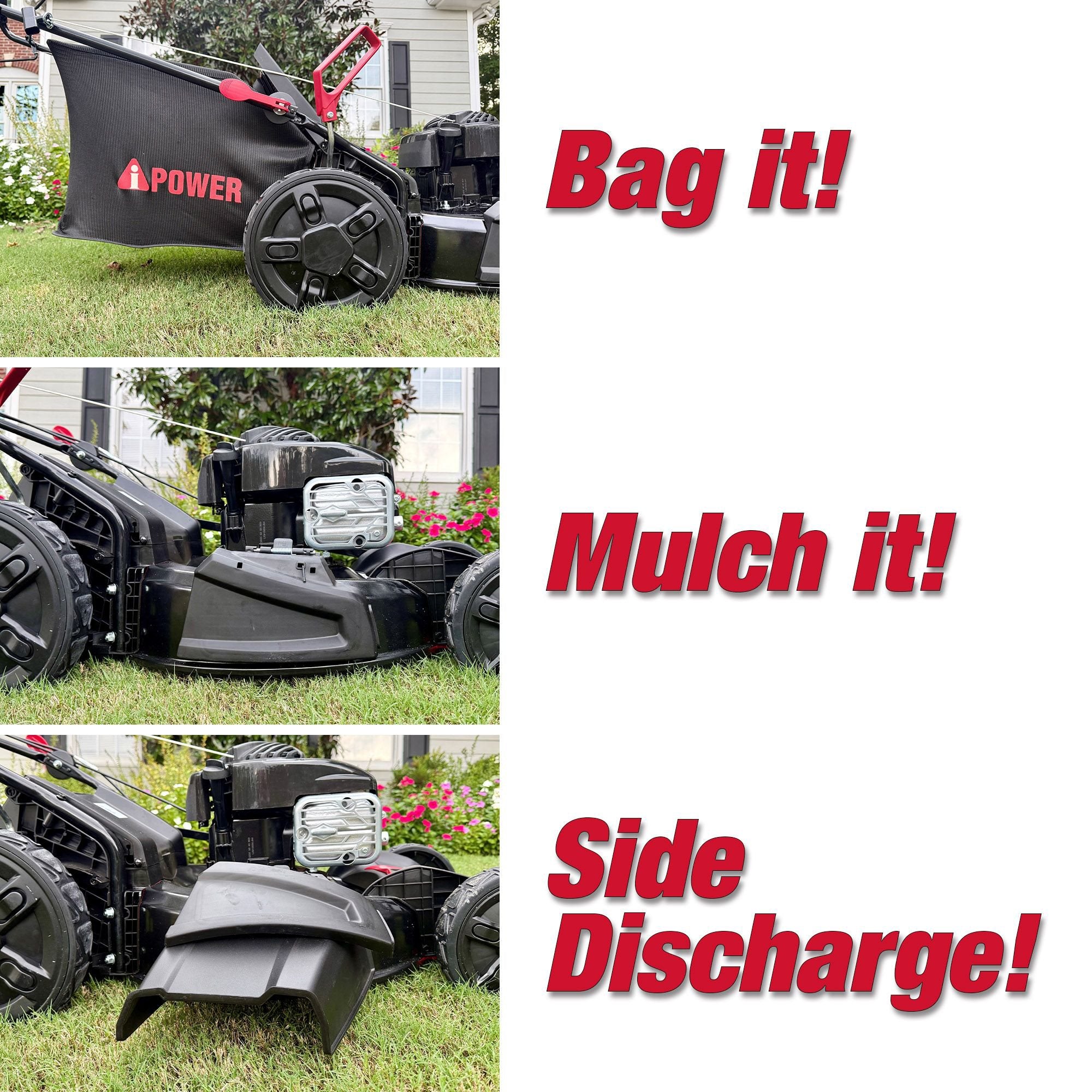

Mulching – Natural Lawn Nutrition
Finely cuts grass into small pieces and returns them to the lawn. Helps retain moisture and naturally fertilize your grass.

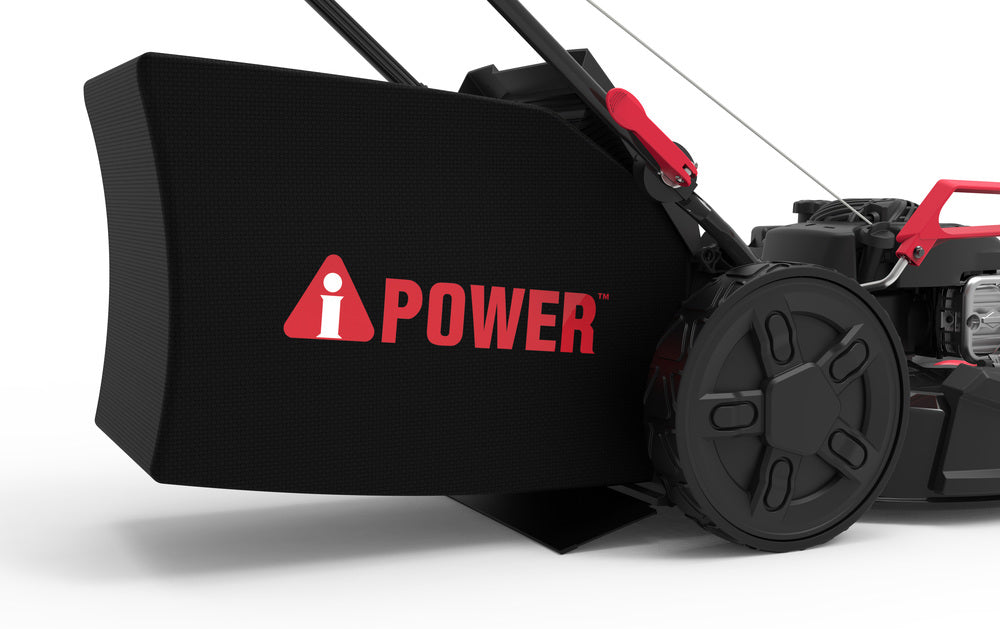

Rear Bagging – Clean Lawn Finish
Collect grass clippings in the rear bag for a clean, tidy lawn. Ideal for regular mowing and easy disposal of yard debris.
Side Discharge – Fast Cutting Performance
Quickly ejects clippings to the side for efficient mowing. Perfect for tall grass and large areas that need faster cutting.
Self-Propelled Drive – Effortless Mowing
The RWD self-propelled system provides strong traction and smooth movement, making it easier to mow slopes, uneven ground, and larger lawns.
| LM3N1-SPR SPECIFICATIONS | |
|---|---|
| Model | LM3N1-SPR |
| ENGINE | |
| Engine Power | 4.6 hp |
| Engine model | Briggs & Stratton EX550 |
| Engine type | Single cylinder, 4-stroke, air cooled, OHV, Recoil start |
| Engine displacement | 8.5 cu.inch / 140cc |
| Fuel tank capacity | 21 Gal (800ml) |
| Engine oil capacity | 15.89 fl.oz (470ml) |
| CUTTING DECK | |
| Cutting deck material | Steel |
| Cutting width | 21 inch / 530mm |
| Cutting height steps | 6 |
| Cutting height adjustment | Central |
| Cutting height, max (approximate) | 3.74 inch / 95mm |
| Cutting height, min (approximate) | 1.18 inch / 30mm |
| Cutting methods | Collection/BioClip®/Rear discharge/Side discharge |
| Rims, material | Steel |
| DRIVE SYSTEM | |
| Drive system | Self-propelled, variable speed |
| Drive wheels | Rear |
| COLLECTION | |
| Collector type | Fabric with dust blocker |
| Collection Volume | 2.5 cu.feet / 70L |
| HANDLE & WHEELS | |
| Handle type | Ergonomic Handle |
| Handle height adjustment | 2 Step |
| Foldable handle | Yes |
| Soft grip | Yes |
| Wheels Material | PP+PVC |
| Wheel size, Front | 8 inch |
| Wheel size, Rear | 12 inch / 200mm |
| PACKAGING | |
|---|---|
| UPC | 810191311393 |
| Unit Weight (Net) | 67 lbs |
| Shipping Weight (Gross) | 88 lbs |
| Unit LxWxH | 66 x 22 x 43 inch |
| Carton LxWxH | 38 x 23 x 18 inch |
| GENERAL | |
| Warranty | 2-Years on Engine and Drivetrain |
Unboxing & Operation Video
Video content is being prepared and will be updated soon.
Stay tuned for more exciting content!
Maintenance Video
Video content is being prepared and will be updated soon.
Stay tuned for more exciting content!
Frequently Asked Questions
1. Is this lawn mower self-propelled or push?
This model is available in both push and self-propelled configurations.
Self-propelled models drive the wheels automatically, making it easier to mow larger yards or uneven terrain.
2. What type of fuel does the mower use?
This mower runs on regular unleaded gasoline (87 octane or higher).
Always use fresh fuel and avoid fuel that has been stored for more than 30 days.
3. Does the mower come with engine oil?
Most lawn mowers are shipped without engine oil for safety during transportation.
Please add the recommended oil before starting the engine for the first time.
4. How do I start the lawn mower?
Starting the mower is simple:
Add engine oil and gasoline
Prime the engine if required
Pull the recoil starter cord firmly
Some models also feature easy-start technology for smoother ignition.
5. Can this mower handle thick or tall grass?
Yes. The powerful gasoline engine is designed to cut thick, dense, and tall grass efficiently.
For best results, mow tall grass in multiple passes and adjust the cutting height.
6. What cutting height options are available?
Most gas lawn mowers offer multiple cutting height adjustments, typically ranging from 1 inch to 3.5 inches.
The height can be adjusted easily using the height adjustment lever.
7. What grass disposal options does the mower support?
Depending on the model, the mower may support:
Rear bagging – collects grass clippings
Mulching – finely chops grass to fertilize the lawn
Side discharge – ejects clippings to the side
These options allow you to choose the best method for your lawn care needs.
8. How large of a lawn can this mower handle?
Gas lawn mowers are ideal for medium to large yards, typically up to ½ acre or more, depending on the engine power and deck size.
9. How often should I change the engine oil?
It is recommended to:
Change the oil after the first 5 hours of use
Then every 25–50 hours of operation or once per mowing season.
Regular maintenance helps extend engine life.
10. How do I clean the lawn mower after use?
After mowing:
Turn off the engine and allow it to cool

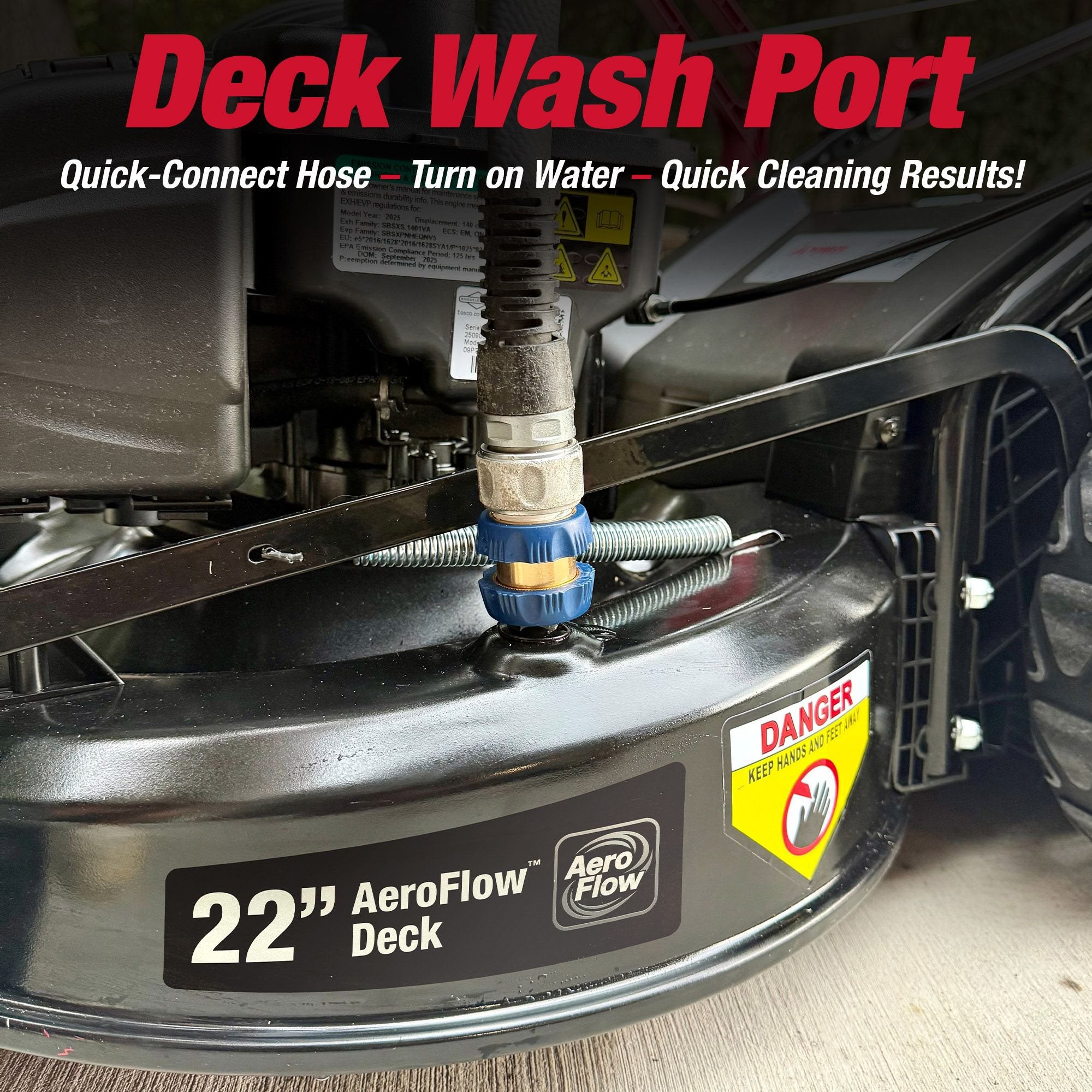

Remove grass clippings from the deck using a brush or hose
Keep the blade and deck clean to maintain cutting performance
Always disconnect the spark plug before cleaning the blade area.
11. Does the mower require assembly?
Some minor assembly may be required, such as:
Attaching the handle
Installing the grass bag
Adding engine oil
Assembly typically takes 10–20 minutes.
12. What warranty is included with the mower?
This lawn mower is backed by a limited manufacturer warranty covering defects in materials and workmanship.
Please refer to the warranty section on this page for full details.
13. Can replacement parts be purchased?
Yes. Replacement parts such as:
blades
air filters
spark plugs
grass bags
are available through our website or authorized dealers.
14. Is this mower suitable for uneven terrain?
Yes. The durable wheels and powerful engine allow the mower to handle slopes and uneven ground more easily than electric mowers.
15. How loud is a gas lawn mower?
Gas lawn mowers typically produce 85–95 dB of noise during operation.
We recommend wearing hearing protection for extended use.
Setup/Startup
1、How do I connect the generator battery? (For models with electric start)
When you first receive the generator, the negative battery cable is usually disconnected to prevent discharge during storage.
- Locate the negative cable near the top or rear of the battery.
- Attach the loose end of the negative cable to the negative terminal post of the battery and tighten securely with a bolt.
- ⚠ Caution: Avoid touching both the battery terminal and the generator frame with tools or metal objects at the same time to prevent short circuits.
2、What type of engine oil should I use?
Initial use (break-in period): SAE 30, 10W-30, or 5W-30 mineral oil is recommended.
After break-in: You may use either mineral oil or full synthetic oil.
High temperatures (above 95°F / 35°C): 10W-40 is recommended.
3、What type of gasoline should I use?
Use unleaded gasoline with an octane rating of 87 or higher, and with ethanol content of no more than 10% (E10).
⚠ Tip: Lower ethanol content helps extend the life of the carburetor, fuel system, and seals.
4、How do I add fuel and check the oil for the first time?
Before the first startup, fill with the recommended engine oil.
Check the dipstick and ensure the oil level is within the marked range.
When adding oil or fuel, avoid spills, keep away from open flames, and use a dedicated oil/fuel container for safety.
5、How do I start the generator with recoil (pull) start? - Set the breaker and master control switch to OFF.
- Select the fuel type:
Gasoline: Open the gasoline valve → Turn the fuel selector to Gasoline.
Propane: Close the gasoline valve → Turn the fuel selector to Propane → Connect the propane tank and open the valve. - Switch the battery to ON (or “RUN” on some models).
- Pull the recoil cord: Pull slowly until resistance is felt, then pull sharply. Repeat if necessary until the engine starts
6、How do I use the electric start function?
Ensure the battery is properly connected and charged.
Set the fuel switch to the correct position.Turn the start switch to START.
Once the engine starts, release the switch and let it return to RUN/ON.
7、Does the generator need to warm up?
Yes. After starting, let the engine run idle for 1–3 minutes to allow the oil to circulate fully before applying a load.
8、How do I safely connect electrical loads?
Start the generator before connecting any appliances.
Connect higher-wattage devices first (e.g., refrigerator, air conditioner), then smaller devices.
Do not exceed the rated wattage capacity of the generator.
9、How do I start the generator in cold weather?
Use engine oil suitable for low temperatures (e.g., 5W-30).Place the generator in a warmer environment or use an engine block heater if available.Expect longer starting times in freezing conditions — this is normal.tent goes here.
Maintenance
1、How do I change the generator oil?
- Place the generator on a level surface.
- Locate the oil drain bolt at the bottom lip of the crankcase and place a container underneath.
- Use a 12mm wrench to remove the drain bolt and allow the oil to drain completely.
- Reinstall the bolt, remove the oil filler cap, and refill with oil until it reaches the thread level of the cap.
Tip: If the generator is on a flat surface, excess oil will naturally overflow before it is overfilled.
2、How do I drain fuel from the tank? - Turn the fuel valve to the OFF position.
- Place a container under the fuel 3. filter cup (below the valve).
- Remove the cup and turn the valve to ON to drain fuel completely.
Reinstall the fuel filter cup.
3、How should I prepare my generator for long-term storage?
Turn the circuit breaker OFF and run the generator for 3–5 minutes.
Switch the fuel valve to OFF and let the engine run until it shuts down.
Turn the engine/battery switch to OFF.
Drain remaining fuel from the tank and carburetor.
Remove the spark plug, add 2 tablespoons of 10W-30 oil into the cylinder, and pull the recoil starter a few times to lubricate.Reinstall the plug.
Disconnect and remove the battery, then maintain it with a trickle charger.
Store the generator in a cool, dry, and well-ventilated location.
4、How do I maintain the generator battery?
Generator batteries can lose charge within 3–6 months of storage.
Disconnect the battery when not in use.
Use a 12V SLA-compatible trickle charger to keep it charged.
Avoid exposing the battery to extreme heat or cold.
5、How often should I perform generator maintenance?
Before each use: Check fuel level, engine oil, and air filter. Every 50–100 hours of operation: Change engine oil, clean the spark plug, and service the air filter. Long-term storage: Drain fuel completely and store the generator properly.
6、Do I need to replace the air filter, and how often?
Yes. The air filter should be cleaned every 25 hours of use and replaced every 100–150 hours, or more often in dusty conditions.
7、When should I replace the spark plug?
Inspect the spark plug every 100 hours of operation. Replace it if it shows wear, buildup, or damage.
8、How do I prevent stale fuel from damaging the engine?
If the generator will not be used for more than 30 days, add a fuel stabilizer to fresh gasoline or drain the fuel system completely.
How to Contact Us for Further Assistance:
Phone Support: Connect directly with our knowledgeable customer service team at 855-888-3598 for immediate assistance.
Email Support: Send us an email with your inquiry, and our support team will respond promptly.
Live Chat: Use our real-time chat feature to get instant answers to your questions.
