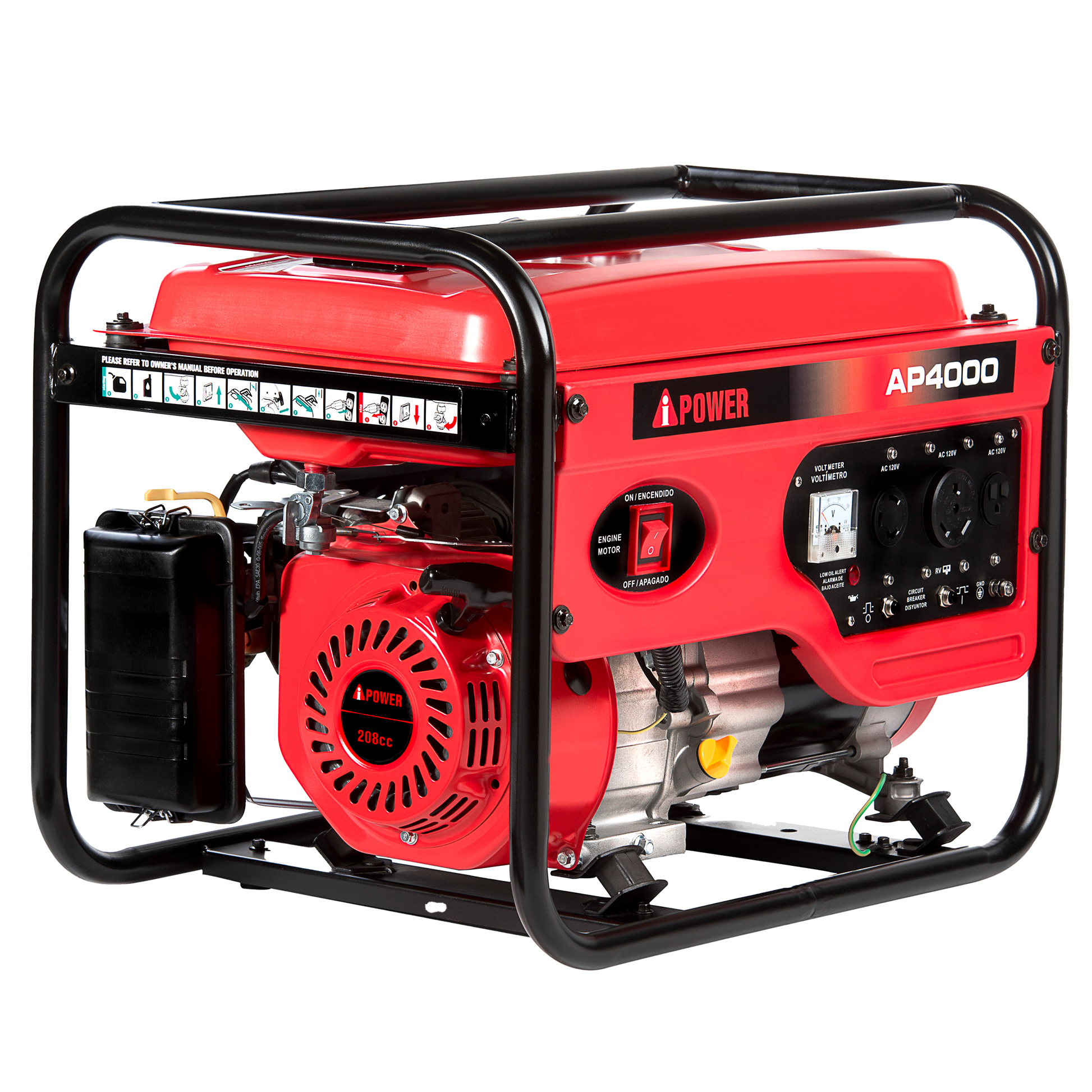

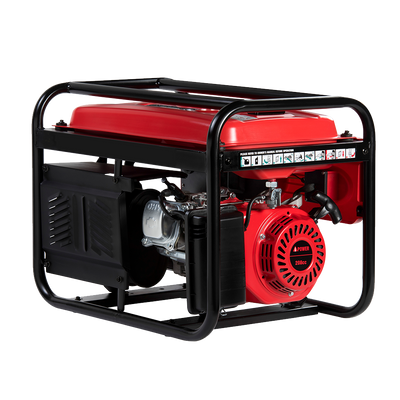

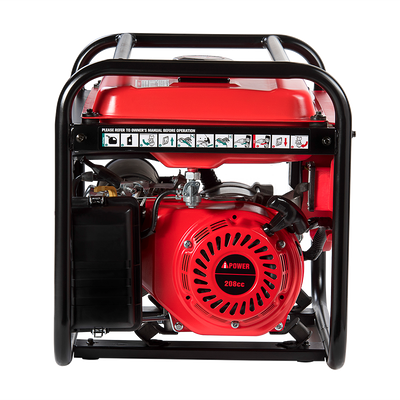

AP4000 - 4000 Watt Portable Generator

Name: AP4000 - 4000 Watt Portable Generator
Brand: A-iPower
SKU: AP4000
Availability: OutOfStock

SKU: AP4000

Barcode: 851217006022

-- / 5 (--)

$0.00 USD

Performance Series Engine: 223cc OHV engine with Cast Iron Sleeve & Low Oil Shutdown
High Output: 4,000 starting watts - 3,000 running watts
Run Time: 4 - gallon fuel tank for extended runtime of 14.5 hours at 25% load
Digital Hour Meter: For quick and easy run time reading
AC Outlets: Complete with standard 20A - 120V house hold (5-20R), 30A - 120V Twist lock (L5-30R) and 30A - 120V RV Outlet (TT-30R)
Heavy Duty Frame Construction: Built tough with durable powder coat finish
Portable Design: Easy to transport with folding handle and wheels

AP4000 - 4000 Watt Portable Generator

$0.00 USD

Description:

The A-iPower AP4000 provides 4,000 watts of starting power and 3,000 watts of running power, it’s ideal for construction jobsite or anywhere around your home or recreational use like RVing. The generator features a TT-30R RV outlet and an easy to reach control panel which conveniently provides easy, user-friendly access to the panel. The generator is powered by A-iPower 208cc / 7HP OHV engine, combined with an efficient high output alternator designed and manufactured by Senci, this delivers greater peak wattage when starting motor-driven tools and appliances. The A-iPower generator can power up: lights, TV, refrigerator, pump, and fan all at the same time. It is capable of running 1-2 power tools. With a large 4.0 gallon heavy duty all steel construction fuel tank with built in fuel gauge, it provides an average run time of 12 hours at 50% load. The generator operates at 68dBA. Powerful, Portable, Light, Compact, Reliable, Purpose-Built are the words for the A-iPower AP4000 generator.

Powerful and Reliable
With a fuel capacity of 4 gallons, the AP4000 can operate for around 12 hours at 50% load with a full tank.

Intuitive Control Panel
The AP4000 offers a voltmeter to show you the power output, as well as low oil light, fuel gauge, and automatic low oil shut-off.

Open Frame Portability
The open frame design of the AP4000 is ideal for rough environments and demanding outdoor use. Thanks to its weight of 95 lbs. it can be easily grabbed and shifted.

AP4000 SPECIFICATIONS
Model Number	AP4000
OUTPUT
Starting / Running Watts	4000 / 3000W
AC Voltage	120V
Rated Speed/Frequency	3600rpm / 60Hz
Total Harmonic Distortion (THD)	Standard
Grounding System	Neutral Floating
Noise Level (dB)	68
ENGINE
Engine Type	Single Cylinder 223cc - 4 Stroke OHV
Starting System	Recoil Start
Low Oil Shutdown	Yes
Cast Iron Sleeve	Yes
Fuel Type	Gasoline
Tank	4.0 Gal
Runtime @ 25% Load	14.5 Hour
Oil Type and Capacity	10W-30 - 550ml
Alternator Type	Brushed with AVR
CONTROL PANEL
AC Outlets	1x5-20R (20A,120V) - 1xL5-30R (30A,120V) - 1xTT-30R (30A, 120V)
Hour Meter	Yes

CERTIFICATIONS
Certifications	EPA - CARB
TRANSPORTATION
Handle	Single Folding
Wheel	Flat Free 7.0"
PACKAGING
UPC	851217006022
Unit Weight (Net)	100 lbs / 45 kg
Shipping Weight (Gross)	105.8 lbs / 48.0 kg
Assembled Dimension	23.2" x 21.7" x 18.5"
Carton Dimension	24.4 x 18.1 x 19.7 inch
Included Accessories	Tool Kit, Manual, Quick Start Guide
GENERAL
Warranty (Residential)	2 Year Limited Warranty

Unboxing & Operation Video

Maintenance Video

⏳

Video content is being prepared and will be updated soon.

Stay tuned for more exciting content!

Safety Q&A

1、Where should I place the generator during operation?
Always operate the generator outdoors only. Keep it at least 20 feet (6 m) away from doors, windows, and vents, and at least 5 feet (1.5 m) away from any combustible materials. Place it on a dry, stable surface under a protective cover or canopy to shield it from the weather.

2、What should I know before refueling a generator?
Always turn off the generator and let it cool down completely before refueling.
Use clean, fresh fuel of the recommended grade.
Never refuel while the generator is running or hot, as this may cause fire or explosion.

3、Where should I safely store a generator when not in use?
Store the generator in a cool, dry, and well-ventilated location. Make sure the air vents are not blocked and that it is kept away from any flammable materials.

4、How do I safely transport a generator?
Before transporting, turn off the unit, drain the fuel tank, and disconnect the spark plug. Keep the generator upright during transport, ensure ventilation openings are not blocked, and avoid exposure to heat or moisture.

Setup/Startup

1、How do I connect the generator battery? (For models with electric start)
When you first receive the generator, the negative battery cable is usually disconnected to prevent discharge during storage.

Locate the negative cable near the top or rear of the battery.
Attach the loose end of the negative cable to the negative terminal post of the battery and tighten securely with a bolt.
⚠ Caution: Avoid touching both the battery terminal and the generator frame with tools or metal objects at the same time to prevent short circuits.

2、What type of engine oil should I use?
Initial use (break-in period): SAE 30, 10W-30, or 5W-30 mineral oil is recommended.
After break-in: You may use either mineral oil or full synthetic oil.
High temperatures (above 95°F / 35°C): 10W-40 is recommended.

3、What type of gasoline should I use?
Use unleaded gasoline with an octane rating of 87 or higher, and with ethanol content of no more than 10% (E10).
⚠ Tip: Lower ethanol content helps extend the life of the carburetor, fuel system, and seals.

4、How do I add fuel and check the oil for the first time?
Before the first startup, fill with the recommended engine oil.
Check the dipstick and ensure the oil level is within the marked range.
When adding oil or fuel, avoid spills, keep away from open flames, and use a dedicated oil/fuel container for safety.

5、How do I start the generator with recoil (pull) start?
Set the breaker and master control switch to OFF.
Select the fuel type:
Gasoline: Open the gasoline valve → Turn the fuel selector to Gasoline.
Propane: Close the gasoline valve → Turn the fuel selector to Propane → Connect the propane tank and open the valve.
Switch the battery to ON (or “RUN” on some models).
Pull the recoil cord: Pull slowly until resistance is felt, then pull sharply. Repeat if necessary until the engine starts

6、How do I use the electric start function?
Ensure the battery is properly connected and charged.
Set the fuel switch to the correct position.Turn the start switch to START.
Once the engine starts, release the switch and let it return to RUN/ON.

7、Does the generator need to warm up?
Yes. After starting, let the engine run idle for 1–3 minutes to allow the oil to circulate fully before applying a load.

8、How do I safely connect electrical loads?
Start the generator before connecting any appliances.
Connect higher-wattage devices first (e.g., refrigerator, air conditioner), then smaller devices.
Do not exceed the rated wattage capacity of the generator.

9、How do I start the generator in cold weather?
Use engine oil suitable for low temperatures (e.g., 5W-30).Place the generator in a warmer environment or use an engine block heater if available.Expect longer starting times in freezing conditions — this is normal.tent goes here.

Maintenance

1、How do I change the generator oil?

Place the generator on a level surface.
Locate the oil drain bolt at the bottom lip of the crankcase and place a container underneath.
Use a 12mm wrench to remove the drain bolt and allow the oil to drain completely.
Reinstall the bolt, remove the oil filler cap, and refill with oil until it reaches the thread level of the cap.
Tip: If the generator is on a flat surface, excess oil will naturally overflow before it is overfilled.

2、How do I drain fuel from the tank?
Turn the fuel valve to the OFF position.
Place a container under the fuel 3. filter cup (below the valve).
Remove the cup and turn the valve to ON to drain fuel completely.
Reinstall the fuel filter cup.

3、How should I prepare my generator for long-term storage?
Turn the circuit breaker OFF and run the generator for 3–5 minutes.
Switch the fuel valve to OFF and let the engine run until it shuts down.
Turn the engine/battery switch to OFF.
Drain remaining fuel from the tank and carburetor.
Remove the spark plug, add 2 tablespoons of 10W-30 oil into the cylinder, and pull the recoil starter a few times to lubricate.Reinstall the plug.
Disconnect and remove the battery, then maintain it with a trickle charger.
Store the generator in a cool, dry, and well-ventilated location.

4、How do I maintain the generator battery?
Generator batteries can lose charge within 3–6 months of storage.
Disconnect the battery when not in use.
Use a 12V SLA-compatible trickle charger to keep it charged.
Avoid exposing the battery to extreme heat or cold.

5、How often should I perform generator maintenance?
Before each use: Check fuel level, engine oil, and air filter. Every 50–100 hours of operation: Change engine oil, clean the spark plug, and service the air filter. Long-term storage: Drain fuel completely and store the generator properly.

6、Do I need to replace the air filter, and how often?
Yes. The air filter should be cleaned every 25 hours of use and replaced every 100–150 hours, or more often in dusty conditions.

7、When should I replace the spark plug?
Inspect the spark plug every 100 hours of operation. Replace it if it shows wear, buildup, or damage.

8、How do I prevent stale fuel from damaging the engine?
If the generator will not be used for more than 30 days, add a fuel stabilizer to fresh gasoline or drain the fuel system completely.

How to Contact Us for Further Assistance:

Phone Support: Connect directly with our knowledgeable customer service team at 855-888-3598 for immediate assistance.
Email Support: Send us an email with your inquiry, and our support team will respond promptly.
Live Chat: Use our real-time chat feature to get instant answers to your questions.
